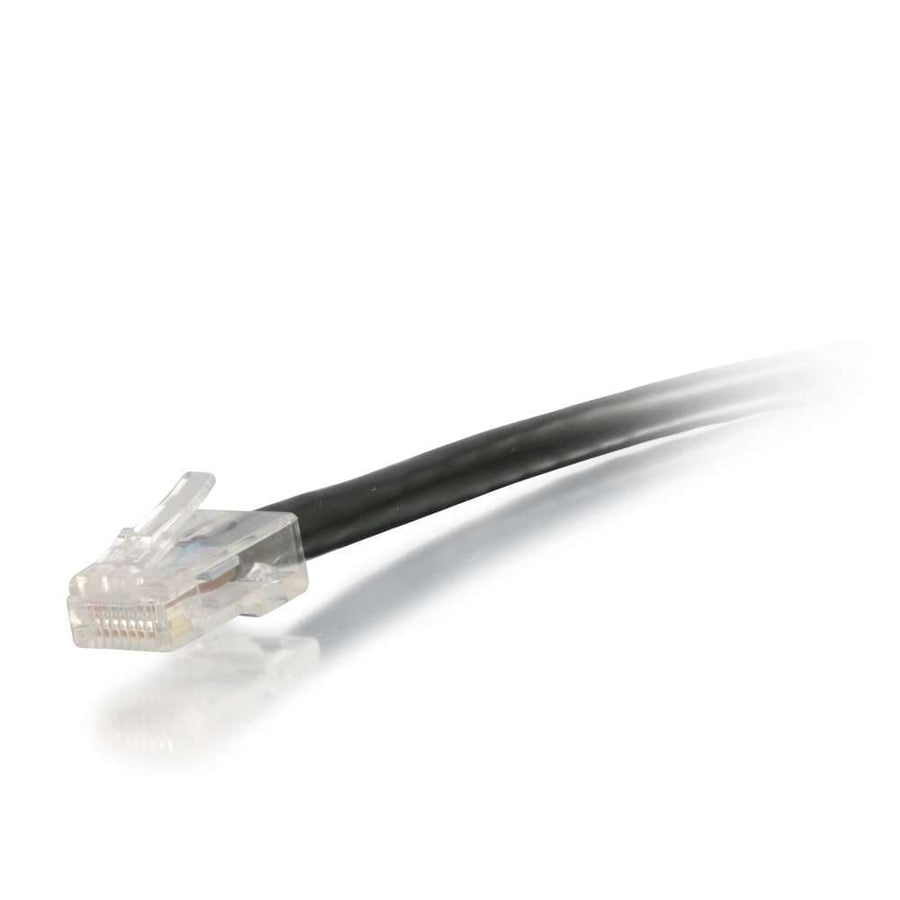

2ft (0.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
2ft Cat6 Unshielded UTP Ethernet patch cable, black, with RJ-45 male connectors and stranded copper conductors
The C2G CG04107 is a 2ft (0.6m) Cat6 Unshielded UTP Ethernet patch cable designed for high-bandwidth applications including fast Ethernet, Gigabit computer networks, and bandwidth-intensive voice, data, or video distribution. This black cable features 24 AWG stranded copper conductors that minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line, which helps reduce impedance and structural return loss (SRL). This cable is constructed with a PVC jacket and has a cable diameter of 0.24 in (6 mm). It utilizes a T568B wiring scheme and is rated for a temperature of 75°C. This non-booted patch cable is part of a larger series of Cat6 Non-Booted Patch Cables that offers various lengths and colors to facilitate organized, color-coded network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041078 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the C2G CG04107?
This patch cable uses the T568B wiring scheme.
Is this cable suitable for high-speed data networks?
Yes, it is a Cat6 cable designed for Gigabit computer networks and bandwidth-intensive video or data distribution.
What is the construction of the conductors in this cable?
The CG04107 features stranded copper conductors designed to minimize Near-End Crosstalk (NEXT).
What is the diameter and material of the cable jacket?
The cable has a 0.24 in (6 mm) diameter and is constructed with a PVC jacket.
Are there other versions of this Cat6 cable available?
Yes, this SKU is part of a series that offers different lengths and colors for network organization.
