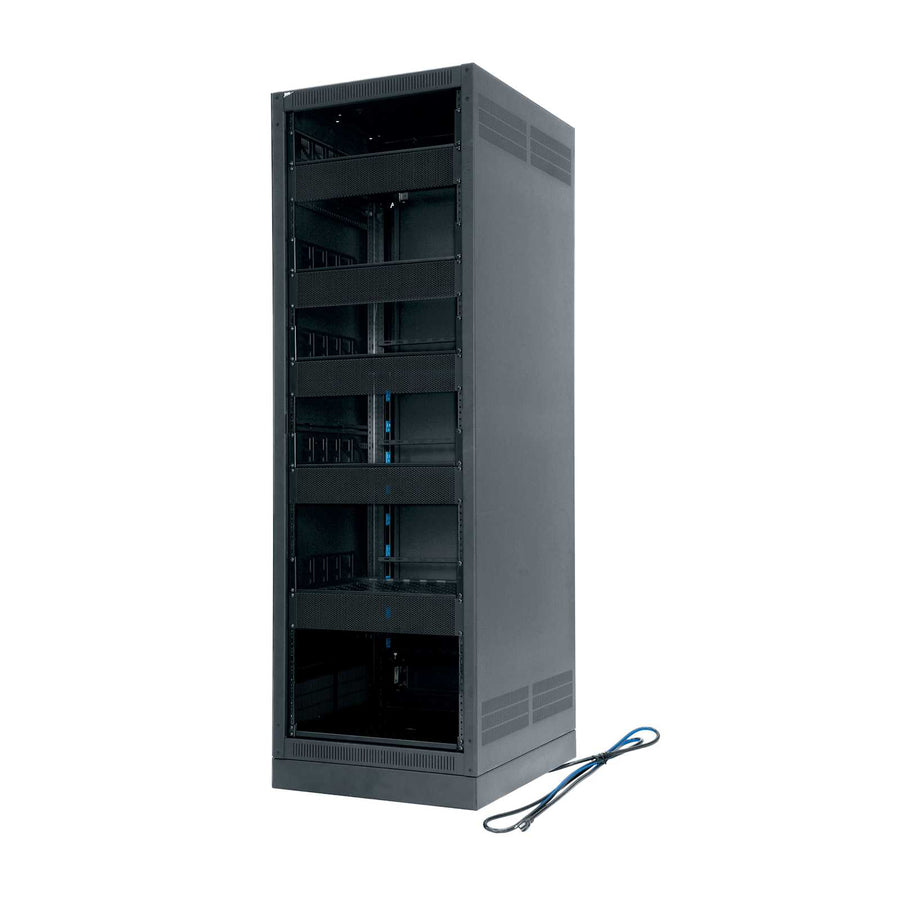

27 RU ERK Series Rack, 25 Inches Deep, Configured
27 RU floor-standing rack, 25" deep, pre-configured for residential AV with a key-locked rear door
The ERK-2725-CONFIG is a 27 RU floor-standing rack from the Middle Atlantic ERK Series, specifically pre-configured for residential AV environments. This standalone enclosure features a robust, fully welded steel construction with a black wrinkle powder coat finish. It is designed for thermal management through enclosure sides that include both top and bottom venting, alongside four included 2-space vent panels. For equipment security, it features a key-locked standard rear door. Cable management is streamlined via included LACE-OP lacer strips, five offset lacer bars, and convenient lacing points. This specific configuration comes ready to use with a fine floor caster base, an included 15A 10-outlet corded vertical power strip, and four vented shelves, plus one heavy-duty 4-point shelf (U2V and VSA-1626). The 10-32 threaded rackrails are numbered for easy component identification.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25 in (63.5 cm) |
| Height | 55.25 in (140.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 27 RU |
| Shipping Weight | 189.96 lbs (86.2 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
| Usable Height | 47.38 in (120.4 cm) |
All other specifications 14
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Pre-Configured for Residential AV |
| Rack Rail Type | 10-32 |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Ships Flat | No |
| UPC | 656747123061 |
| Certifications | ASCEUL Listed |
| Seismic Load Capacity | 591 lbs (268.1 kg) |
Resources
You'll need these with it
Caster Base for 25 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-25$324.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
1 RU Flat Blank Rack Panel, Aluminum
PHBL-1$19.80
2 RU Utility Rack Drawer
UD2$216.90
1 RU Flanged Blank Rack Panel, Steel
EB1$17.10
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00
1 RU Rack Vent Panel, Perforated with 25% Open Area - 12 Piece Contractor Pack
VTF1-CP12$280.80
1 RU Rack Vent Panel, Perforated with 25% Open Area
VTF1$27.90
2 RU Rack Vent Panel, Perforated with 64% Open Area
VT2$34.20
1 RU Rack Vent Panel, Perforated with 64% Open Area - 12 Piece Contractor Pack
VT1-CP12$280.80
2 RU Rack Vent Panel, Perforated with 25% Open Area
VTF2$34.20
1 RU Rack Vent Panel, Perforated with 64% Open Area
VT1$27.90
Questions about this part
What equipment can I mount in the ERK-2725-CONFIG?
This 27 RU rack uses standard 19 in (48.3 cm) 10-32 threaded rackrails to accommodate standard rackmount AV components.
How do I make this rack seismic compliant?
While this unit is seismic rated with a 591 lbs (268.1 kg) capacity, it must be installed with ERK-Z4 brackets to maintain seismic protection.
Is the ERK-2725-CONFIG a complete kit for installation?
This is a pre-configured SKU that includes a 15A, 10-outlet corded vertical power strip, four vented shelves, one heavy-duty 4-point shelf, and a caster base.
Can I add more ventilation to the enclosure?
Yes, the enclosure includes four 2-space vent panels, and additional vent panels like the VTF1 or VT2 series are compatible.
What is the difference between the ERK and other ERK series models?
The ERK-2725-CONFIG is a specific configuration of the ERK Series; other versions in the series offer different RU heights and depths ranging from 20 in to 28 in.
