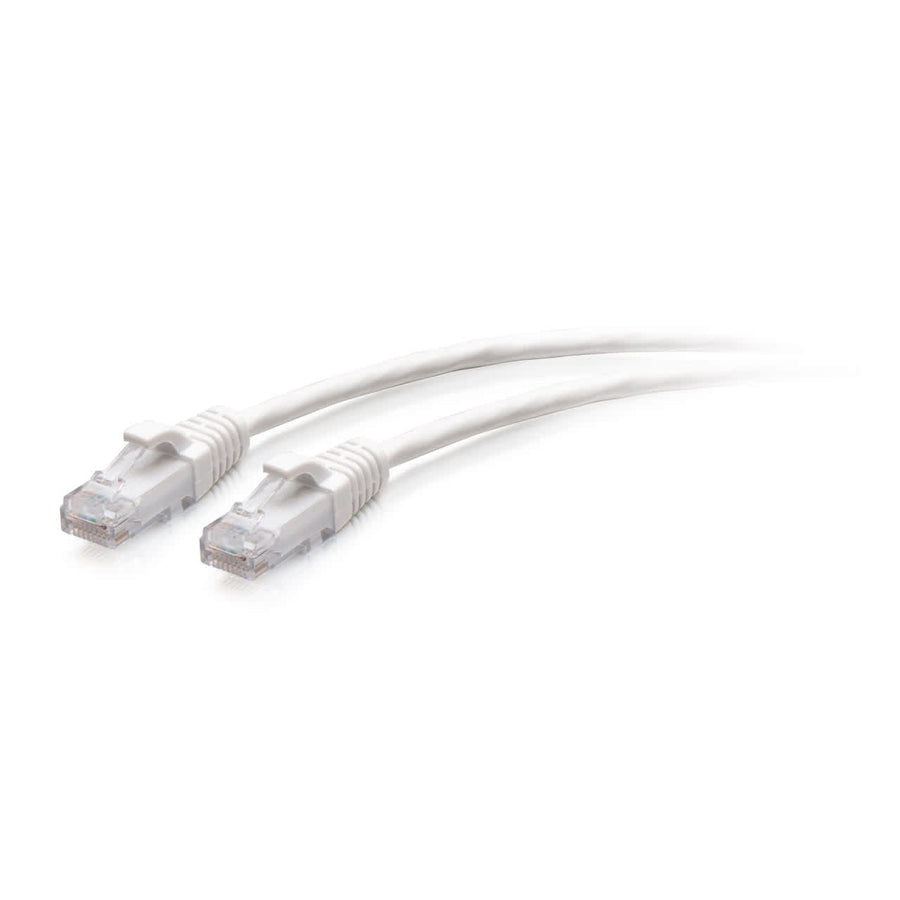

25ft (7.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - White
25ft White Cat6a slim snagless UTP patch cable with 28AWG conductors for high-density applications
The C2G30187 is a 25 ft (7.6 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments such as datacenters and large conference rooms. This cable utilizes 28AWG stranded copper conductors, resulting in a reduced cable diameter of 0.19 in (4.8 mm) ± 0.15mm (0.01 in). This slim profile provides increased airflow in tight spaces and is suitable for high-bandwidth applications requiring up to 10 GBPS data transfer rates. Each cable features RJ-45 male connectors with gold-plated contacts and a molded, snagless PVC boot to provide strain relief and prevent accidental snags during installation. The unshielded (UTP) construction meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. This white patch cable is ideal for Power over Ethernet (PoE) and VoIP deployments where space and airflow are critical constraints.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 1.05 lbs (0.5 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301875 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Is this cable suitable for high-density racks and datacenters?
Yes, the 28AWG slim construction reduces the cable diameter to 0.19 in (4.8 mm), which allows for increased airflow in high-density installations.
Will this Cat6a cable support 10Gbps speeds?
The C2G30187 supports data transfer rates of 10 GBPS, making it suitable for high-bandwidth applications like HDBaseT or high-speed networking.
What is the difference between this and a standard Cat6 cable?
This Cat6a cable offers double the minimum bandwidth of standard Cat6 and is significantly more powerful than Cat5e for PoE and VoIP applications.
Does this cable include a strain relief boot?
Yes, it features a molded, snagless PVC boot designed to protect the connection and prevent snags during the installation process.
What certifications does this patch cable hold?
This cable is compliant with NDAA 889 and meets REACH, RoHS, and TSCA requirements, and carries the CE mark.
