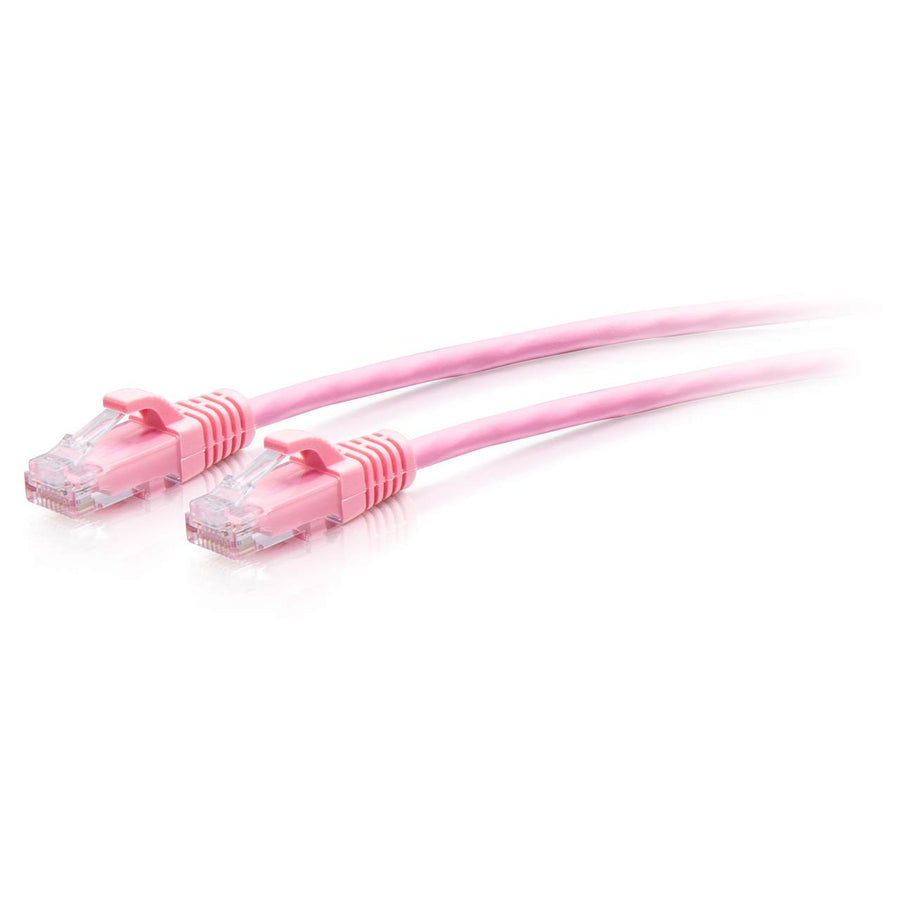

25ft (7.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Pink
25ft Cat6a slim UTP patch cable in pink, featuring 28AWG construction for high-density installations and 10Gbps data transfer speeds
The C2G30201 is a 25 ft (7.6 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling applications. This pink cable is engineered for environments where space is critical, such as large conference rooms or data centers, utilizing 28AWG stranded copper conductors to reduce the cable diameter to 0.19 in (4.8 mm) ± 0.15mm (± 0.01 in). This slim profile increases airflow in crowded enclosures compared to standard Cat6 cables. Each cable features RJ-45 male connectors with gold-plated contacts and a molded, snagless PVC boot to provide strain relief and prevent snags during installation. Capable of supporting data transfer rates up to 10 GBPS, this Cat6a cable is an effective solution for Power over Ethernet (PoE) and VoIP applications. This series meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 1.05 lbs (0.5 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120302018 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work in high-density rack environments?
Yes, the 28AWG construction results in a 0.19 in (4.8 mm) diameter, which increases airflow and provides flexibility in tight spaces.
What is the maximum data speed for the C2G30201?
This Cat6a patch cable supports data transfer rates up to 10 GBPS, making it suitable for high-bandwidth applications like HDBaseT.
Does this cable support Power over Ethernet (PoE)?
Yes, the Cat6a technology in this series is designed to support Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) requirements.
What is the difference between this and standard Cat6 cables?
This Cat6a slim cable provides five times more bandwidth than Cat5e and offers a smaller surface area for improved airflow in crowded racks.
Which documents are available for submittals?
You can access the Cat6a Slim Patch Cable Series Datasheet and the C2G Ethernet Patch Cable Matrix in the resources section.
