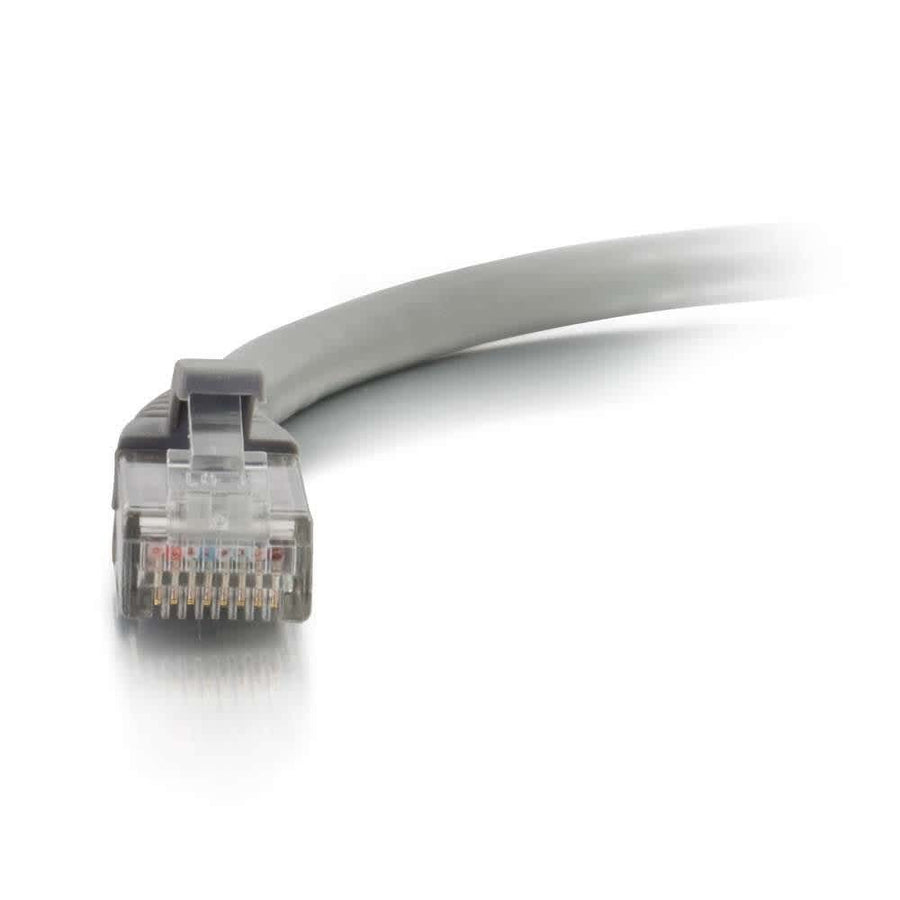

25ft (7.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
25ft Cat6a snagless UTP patch cable, gray, 26AWG stranded copper for 10GBase-T network applications
The CG00669 is a 25ft (7.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in gray, engineered to support 10GBase-T equipment. This cable is designed for use with network adapters, hubs, switches, routers, and patch panels, providing 10 Gigabit data transmission over a 4-pair copper construction. The stranded 26AWG bare copper conductors are insulated with HDPE (High-density Polyethylene) and encased in a PVC jacket. This specific model is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, which helps improve performance by managing alien crosstalk. Each cable features snagless, booted RJ-45 male connectors with PVC hoods, making them suitable for high-density switch environments where cable management is critical. For ease of installation and identification, every cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006695 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Questions about this part
What is the maximum data speed for the CG00669?
The CG00669 supports 10 Gigabit Ethernet (10GBase-T) data transmission over its 25ft (7.6m) length.
Is this cable suitable for high-density switches?
Yes, the snagless boot design on the RJ-45 connectors is specifically intended for use in high-density switch applications.
What type of wiring and shielding does this patch cable use?
This is an unshielded UTP cable utilizing a 568B wiring scheme and 26AWG stranded copper conductors.
What other equipment is this Cat6a cable compatible with?
It is designed for use with switches, routers, hubs, network adapters, and patch panels like the WP246A 24-Port Rack Mount Patch Panel.
Does this cable meet industry standards for testing?
Yes, this cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a channel requirements.
