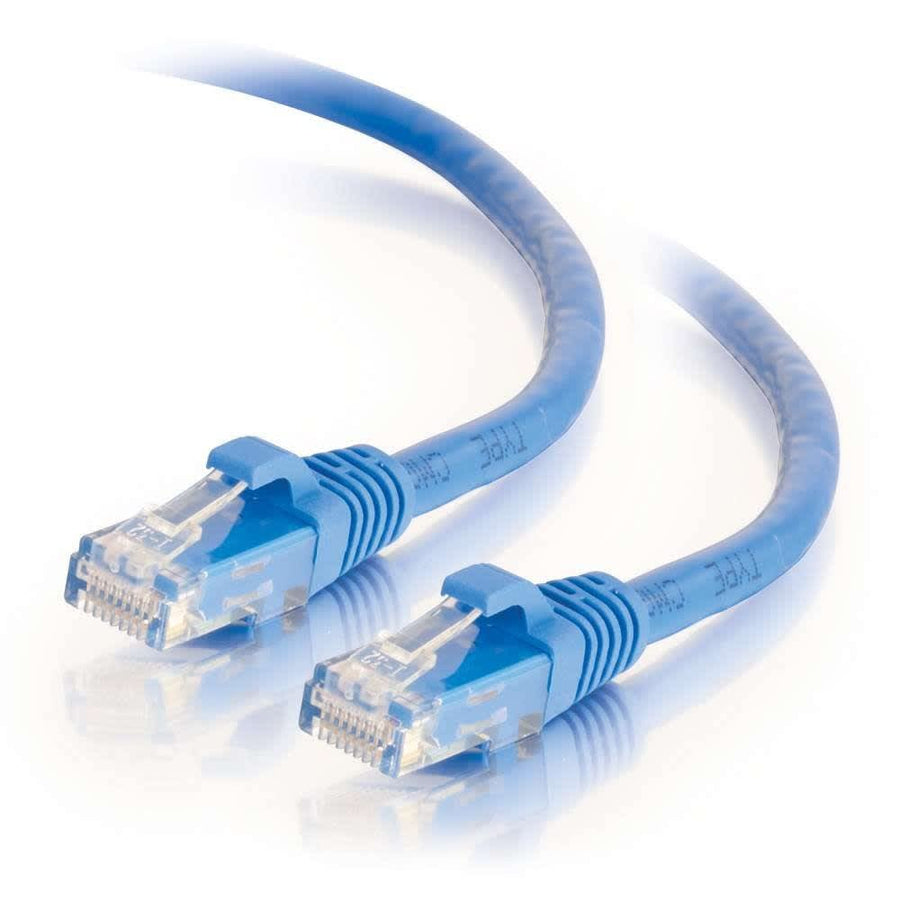

25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 50 Pack - Blue
Bulk 50-pack of 25ft blue Cat6 UTP snagless patch cables with copper conductors for high-bandwidth network applications
The C2G CG29023 is a bulk 50-pack of Cat6 unshielded UTP Ethernet patch cables designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet and Gigabit computer networks. Each 25 ft (7.6 m) cable features a snagless, booted RJ-45 male connector with a PVC hood to provide strain relief and prevent accidental disconnection during installation. These cables are constructed with stranded copper conductors and a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. The wiring scheme follows the T568B standard. Designed to meet all Cat6 TIA/EIA standards, these cables reduce impedance and structural return loss (SRL) by bonding individual pairs to maintain twist-spacing through the termination point. This blue 50-pack is suitable for large-scale deployments requiring reliable connectivity for high-speed networking hardware.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 50 |
| Shield Type | UTP |
| Shipping Weight | 16 lbs (7.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120290230 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is included in this C2G CG29023 bulk pack?
This SKU is a 50-pack of individual 25 ft (7.6 m) blue Cat6 patch cables.
What is the wiring scheme for the CG29023 cables?
These Cat6 patch cables follow the T568B wiring scheme.
What compatible accessories can be used with these Cat6 cables?
These cables are compatible with various hardware, including the Cat6 48-Port Rack Mount Patch Panel (48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (24845CC6).
What are the environmental operating limits for these cables?
The operating temperature range for these cables is -4° to 176°F (-20° to 80°C).
Does the CG29023 come with a warranty?
Yes, C2G provides a lifetime warranty for this product.
