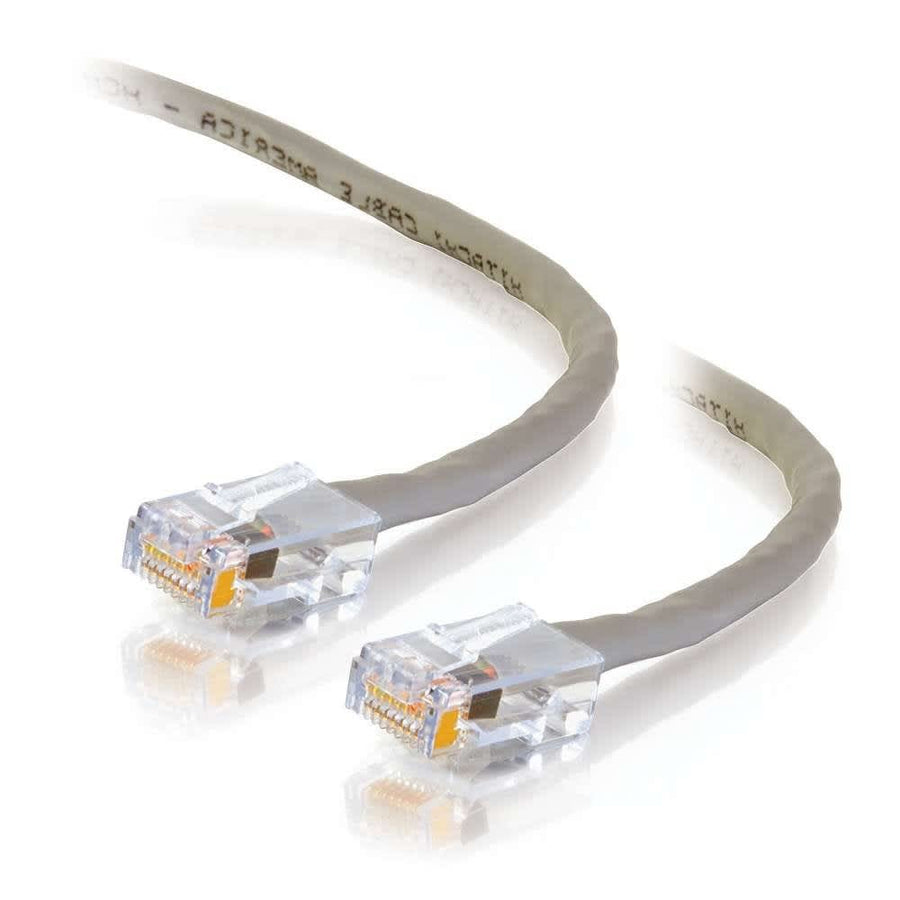

25ft (7.6m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Gray
25 ft Cat6 plenum-rated UTP patch cable, CMP/FT6 rated, with gray PVC jacket and 23AWG solid copper conductors
The C2G CG15272 is a 25 ft (7.6 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed to meet the strict building code requirements of plenum spaces. This cable is ideal for routing through air handling spaces, such as those found above dropped ceilings or under raised floors in schools, hospitals, and commercial buildings. It features a gray PVC jacket with CMP and FT6 ratings, ensuring it meets the necessary safety standards for plenum-rated in-wall installations. The cable is constructed with 23AWG solid copper conductors and 4-pair stranded wiring to minimize Near-End Crosstalk (NEXT), impedance, and structural return loss (SRL). Each RJ-45 male connector is equipped with 50 micron gold plating and is non-booted. This TAA compliant cable is tested to 550MHz and is suitable for high-bandwidth voice, data, and video distribution applications. It complies with TIA/EIA-568-C.2 standards and carries a lifetime warranty.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.65 lbs (0.3 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152729 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the C2G CG15272 suitable for plenum air spaces?
Yes, this cable features a CMP and FT6 rated jacket, making it specifically designed for routing through plenum spaces above dropped ceilings or under raised floors.
What are the technical specifications of the C2G CG15272 cable?
This Cat6 UTP cable is tested to 550MHz and utilizes 23AWG solid copper conductors with 50 micron gold plated RJ-45 male connectors.
What is the difference between this and other CG15272 series cables?
This specific SKU is the gray, 25 ft (7.6 m) version; other models in the series offer different color options like blue and black, and lengths up to 100ft.
What compliance and certifications does this cable hold?
The CG15272 is TAA compliant and meets TIA/EIA-568-C.2 standards, and is listed with RoHS, REACH, and NDAA 889 certifications.
Does this cable work for high-bandwidth applications?
Yes, the construction is designed to minimize Near-End Crosstalk (NEXT) and structural return loss (SRL), making it suitable for bandwidth-intensive voice, data, and video distribution.
