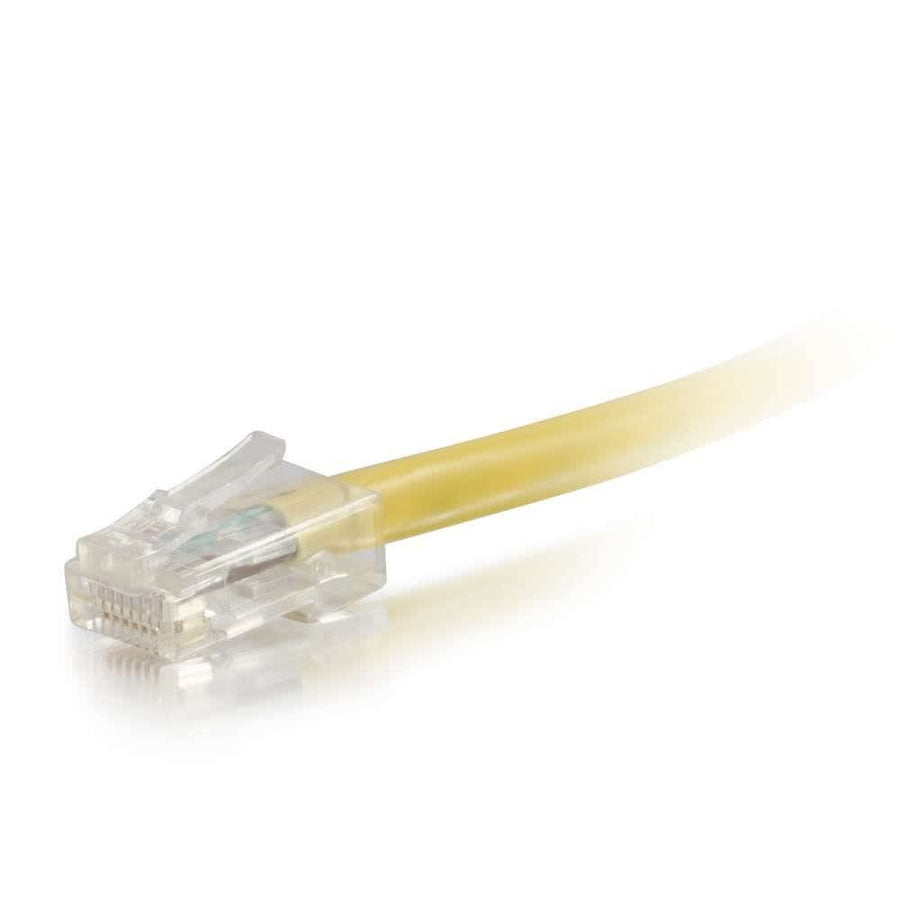

25ft (7.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
25ft yellow Cat6 UTP patch cable with RJ-45 male connectors for high-bandwidth networking
The C2G CG04183 is a 25ft (7.6m) Cat6 Unshielded UTP Ethernet patch cable designed for high-speed, bandwidth-intensive computer networks. This yellow cable supports fast Ethernet and Gigabit applications, including voice, data, and video distribution. Built with high-quality stranded copper conductors, the cable construction is engineered to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded to maintain consistent twist-spacing up to the termination point, which significantly reduces impedance and structural return loss (SRL). This cable follows the T568B wiring scheme and features a non-booted connector design with RJ-45 male ends. The PVC jacket is rated for temperatures up to 75°C. This series is part of a larger collection of Cat6 Non-Booted Patch Cables, with 150 different length and color variants available to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.68 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041832 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the maximum temperature rating for the CG04183 cable jacket?
The PVC jacket material is rated for temperatures up to 75°C.
What wiring standard does this patch cable follow?
The CG04183 is wired using the T568B scheme with RJ-45 male connectors.
Is this Cat6 cable suitable for high-bandwidth video distribution?
Yes, the CG04183 is designed for bandwidth-intensive applications like video, data, and voice in Gigabit networks.
What are the electrical performance specifications for this cable?
This cable features a maximum conductor DC resistance of 9.38#/100m, 100# impedance, and a maximum propagation delay of 545ns/100m.
How can I find different color or length options for this series?
This SKU is part of a series with 150 variants available in 10 different colors and 22 different lengths.
