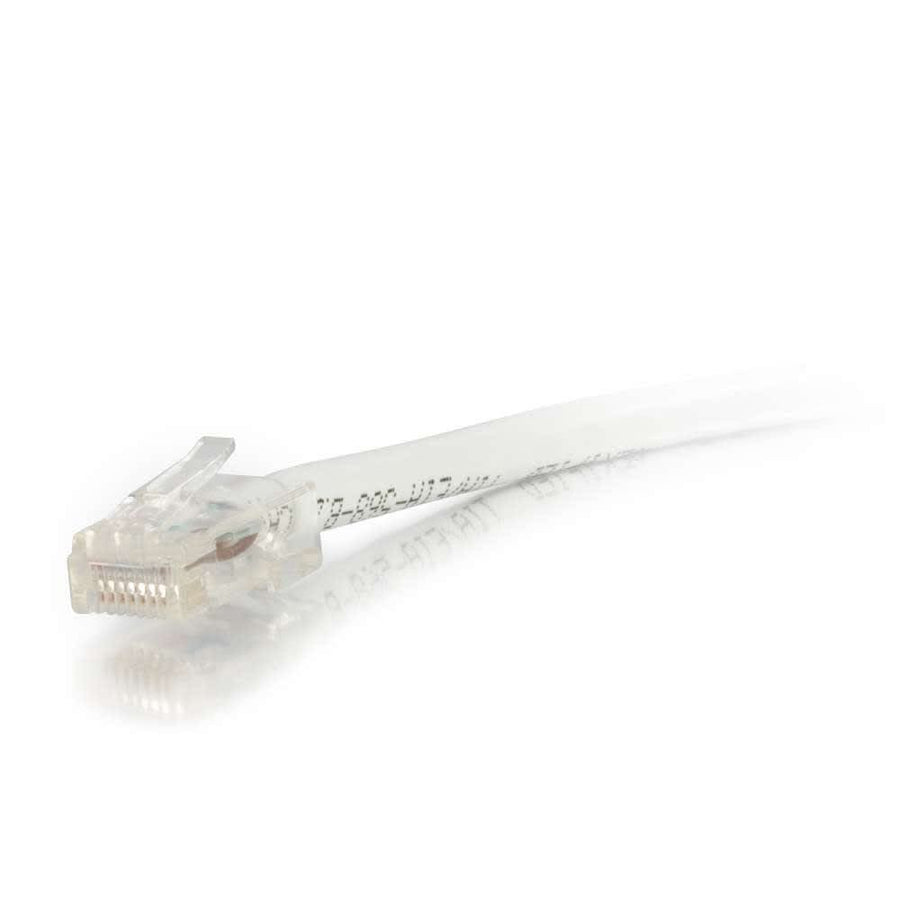

25ft (7.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - White
25ft White Cat6 Unshielded UTP Ethernet patch cable with non-booted RJ-45 connectors
The C2G CG04246 is a 25 ft (7.6 m) Cat6 Unshielded UTP Ethernet patch cable designed for high-bandwidth network environments. This white cable is engineered for fast Ethernet and Gigabit computer networks that require reliable distribution for voice, data, or video applications. Built with stranded copper conductors, it meets all Cat6 TIA/EIA standards and is designed to significantly reduce structural return loss (SRL) and impedance. Each pair is bonded together to maintain consistent twist-spacing throughout the 7.6 m length, all the way to the termination point. This construction helps minimize Near-End Crosstalk (NEXT) levels. The cable features two RJ-45 Male connectors in a non-booted style and utilizes a T568B wiring scheme. With a 0.24 in (6 mm) diameter and a PVC jacket, this cable is suitable for various indoor networking tasks. This product is covered by a Lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.7 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042464 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring standard for the C2G CG04246?
This patch cable uses the T568B wiring scheme and features RJ-45 Male connectors on both ends.
What is the maximum temperature rating for this cable?
The CG04246 is rated for temperatures up to 75°C.
Is this cable suitable for Gigabit networks?
Yes, it is designed for Gigabit computer networks requiring bandwidth-intensive data, voice, or video distribution.
What is the diameter of the CG04246 cable?
The cable has a diameter of 0.24 in (6 mm).
What certifications does this Cat6 cable have?
The CG04246 is CE, REACH, and RoHS compliant.
