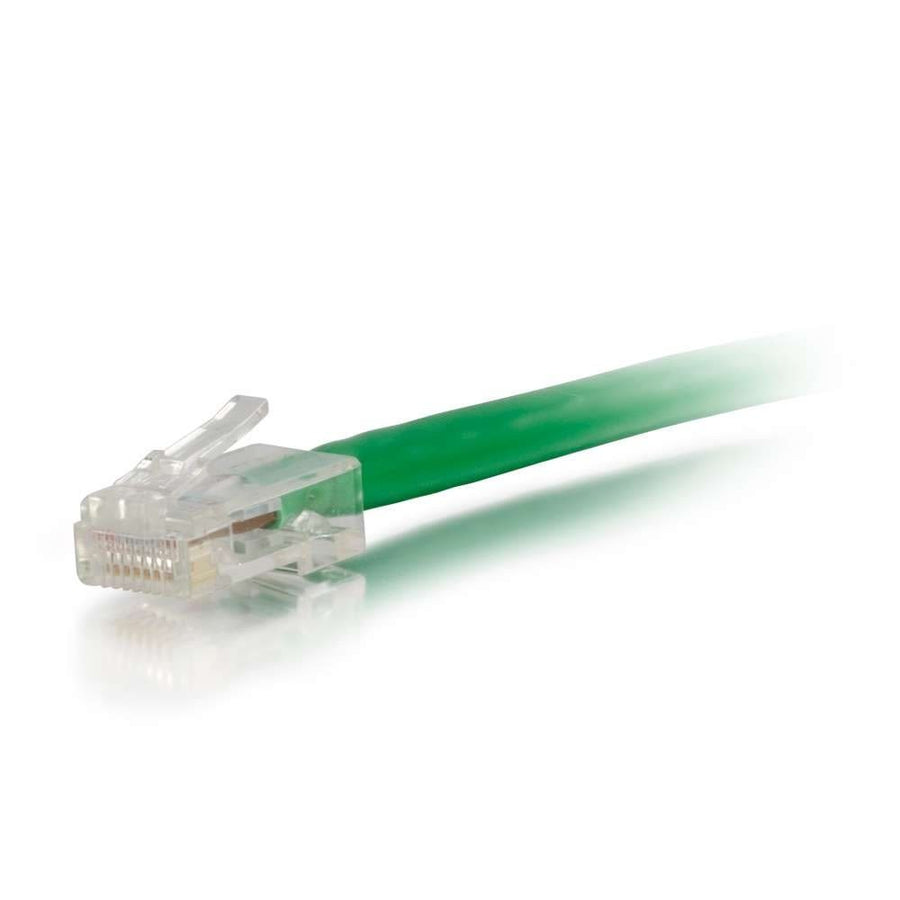

25ft (7.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Green
25ft (7.6m) Cat6 UTP patch cable in green, featuring non-booted RJ-45 male connectors for high-bandwidth network distribution
The CG04141 is a 25ft (7.6m) Cat6 non-booted UTP ethernet patch cable designed for high-performance networking environments. This cable is engineered for fast Ethernet and Gigabit computer networks that require substantial bandwidth for voice, data, or video distribution applications. Built with high-quality copper stranded conductors, this cable is designed to minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together, which helps maintain consistent twist-spacing throughout the entire 25ft (7.6m) line up to the termination point. This construction significantly reduces impedance and structural return loss (SRL). The cable features a green PVC jacket with a 0.24 in (6 mm) diameter and uses a T568B wiring scheme. This specific SKU belongs to the Cat6 Non-Booted Patch Cable series, offering a color-coded solution for organized network installations. It is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.63 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041412 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, the CG04141 is designed for Gigabit computer networks and meets all Cat6 TIA/EIA standards for high-bandwidth applications.
What is the wiring scheme for the CG04141 patch cable?
This cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is this cable suitable for color-coded rack organization?
Yes, this SKU features a green jacket, making it useful for identifying specific network segments in a large installation.
What type of construction is used to reduce crosstalk in this cable?
The CG04141 uses stranded copper conductors and bonded pairs to minimize Near-End Crosstalk (NEXT) and maintain twist-spacing.
What are the electrical performance specifications for this Cat6 cable?
The cable features a maximum propagation delay of 545ns/100m, a maximum delay skew of 45ns/100m, and a maximum conductor DC resistance of 9.38#/100m.
