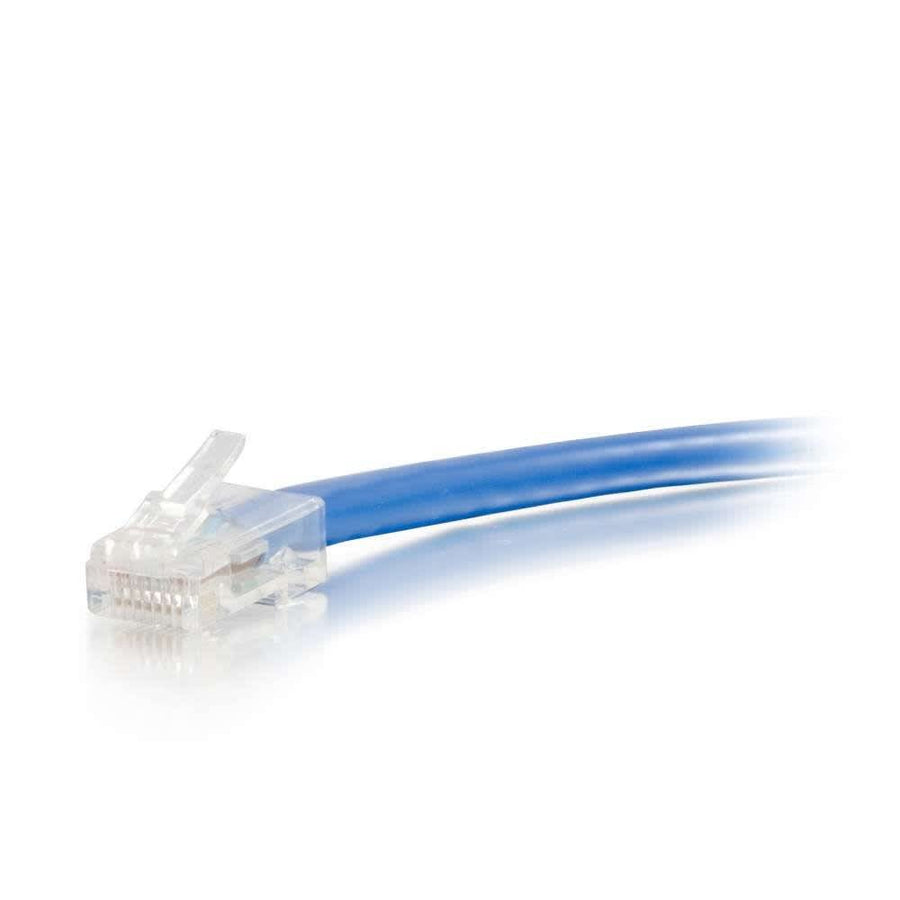

25ft (7.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
25ft Blue Cat6 Unshielded UTP patch cable with RJ-45 male connectors, ideal for bandwidth-intensive network environments
The CG04099 is a 25ft (7.6m) Cat6 unshielded UTP Ethernet network patch cable designed for bandwidth-intensive applications including voice, data, and video distribution. This blue cable features 24 AWG stranded copper conductors that help minimize Near-End Crosstalk (NEXT) levels. It is engineered to meet all Cat6 TIA/EIA standards, which effectively reduces structural return loss (SRL) and impedance. Each individual pair is bonded together to maintain consistent twist-spacing up to the termination point. This non-booted cable design utilizes PVC jacket material and is rated for temperatures up to 75°C. It utilizes a T568B wiring scheme and features RJ-45 male connectors on both ends. This cable is a component of the Cat6 Non-Booted Patch Cable series and is suitable for high-speed Gigabit computer networks requiring reliable performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.7 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040996 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this CG04099 cable work in a standard Cat6 patch panel?
Yes, this cable is compatible with various Cat6 hardware, including the 48-port rack mount patch panel (48845CC6) and the 24-port rack mount patch panel (24845CC6).
What is the wiring scheme used for this patch cable?
The CG04099 uses the T568B wiring scheme for both RJ-45 male connectors.
Is this cable suitable for high-speed data networks?
Yes, it is designed for Gigabit computer networks and meets all Cat6 TIA/EIA standards for bandwidth-intensive distribution.
What temperature range can this cable handle?
The cable is rated for a temperature range of up to 75°C.
Can I use this cable with a network tester?
Yes, it is compatible with tools like the LANsmart TDR Cable Tester and the SOHOTest-E™ Residential Cable Tester.
