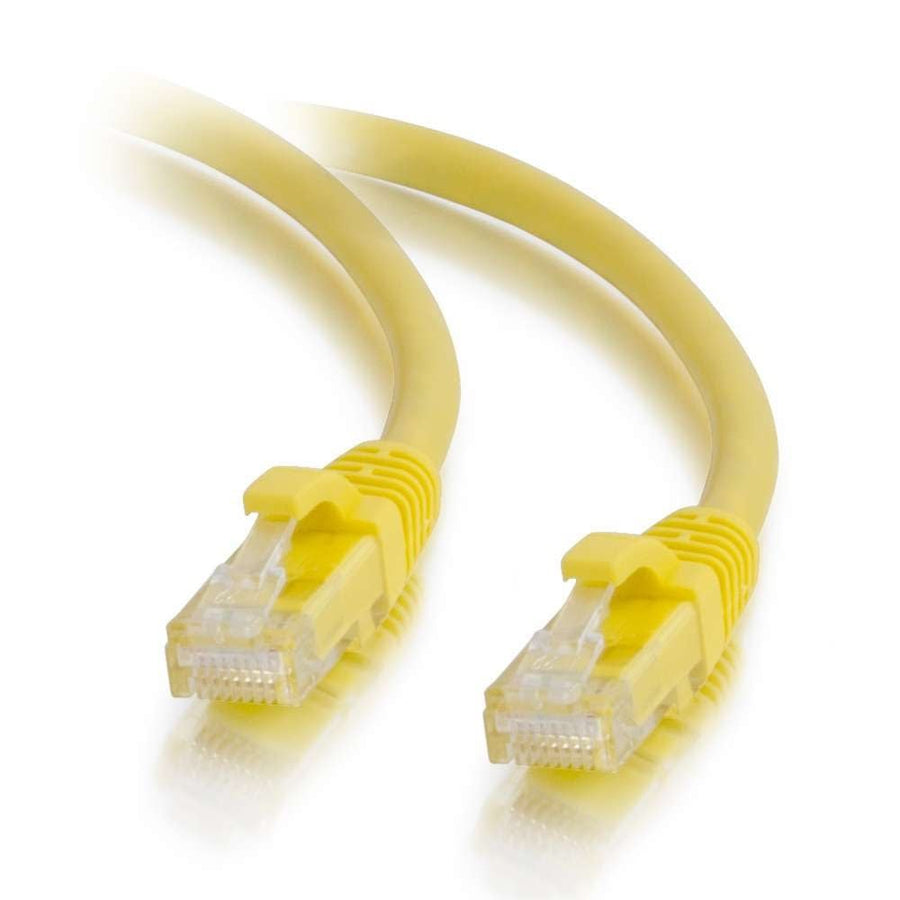

25ft (7.6m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
Yellow Cat5e snagless patch cable, 25ft (7.6m) length, featuring unshielded twisted pair construction and stranded copper conductors
The C2G CG15216 is a 25ft (7.6m) Cat5e snagless patch cable designed for high-bandwidth Ethernet networks requiring voice, data, or video distribution. This unshielded twisted pair (UTP) cable is engineered to meet all Cat5e TIA/EIA standards, significantly reducing structural return loss (SRL) and impedance. It utilizes high-quality stranded copper conductors and a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain precise twist-spacing through to the termination point. The molded snagless boot protects the RJ45 male connectors from clip damage during installation and provides necessary strain relief. Featuring a 0.21 in (5.3 mm) cable diameter and a PVC jacket, this yellow cable is a reliable solution for color-coded network deployments. The electrical profile includes a maximum conductor DC resistance of 89 Ohm/km, a minimum insulation resistance of 100 Ohm/km, and a dielectric strength of 500 MV/m, supporting a bandwidth of 350 mHz.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.57 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152163 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the maximum bandwidth for the C2G CG15216?
The CG15216 is rated for a bandwidth of 350 mHz, meeting Cat5e performance requirements.
Does the CG15216 use stranded or solid conductors?
This patch cable uses 24 AWG stranded copper conductors, which provides better flexibility for patch applications.
What is the difference between the snagless boot and standard boots?
The snagless design on the CG15216 protects the RJ45 connector clips from damage and provides extra strain relief during installation.
Is the CG15216 shielded or unshielded?
The CG15216 is an unshielded twisted pair (UTP) cable, making it suitable for standard Ethernet environments.
Can I use this cable for color-coding my network?
Yes, the CG15216 comes in yellow, and the C2G series is available in 10 different colors for network organization.
