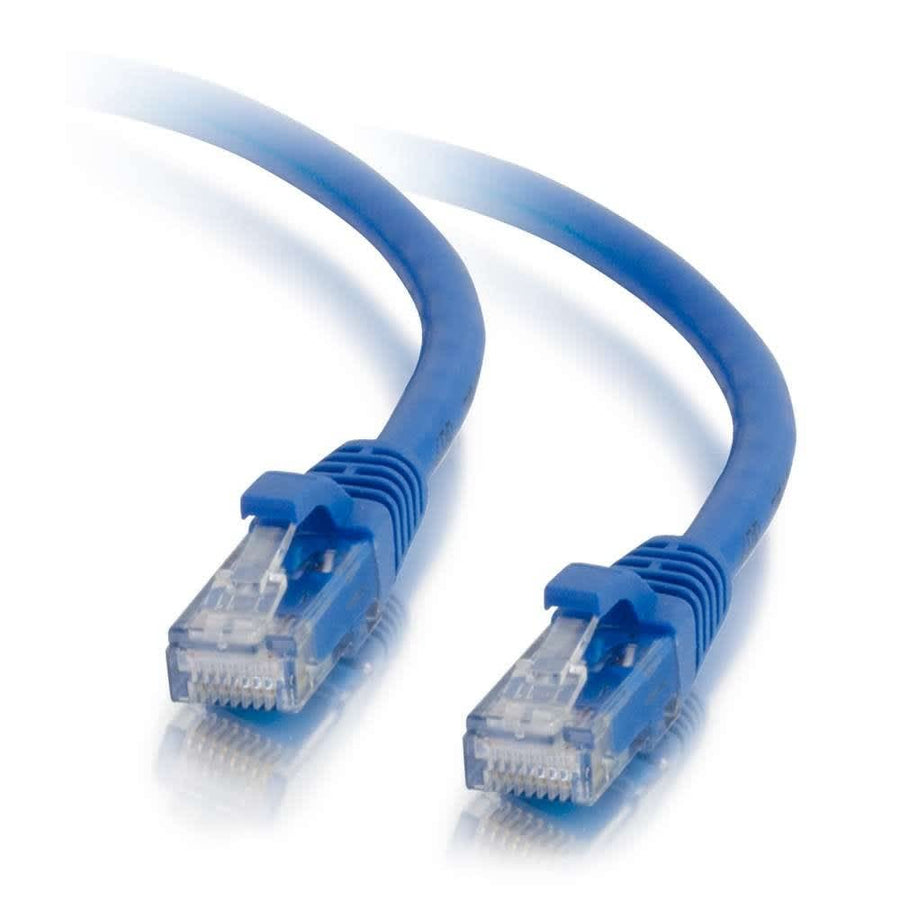

25ft (7.6m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
25ft Cat5e snagless UTP Ethernet patch cable in blue with stranded copper conductors and RJ-45 male connectors
The C2G CG15212 is a 25 ft (7.6 m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable in blue, designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat5e TIA/EIA standards and is built with high-quality copper stranded conductors to minimize Near-End Crosstalk (NEXT) levels. To reduce impedance and structural return loss (SRL), each individual pair is bonded together to maintain twist-spacing through the entire line to the termination point. The 0.21 in (5.3 mm) diameter cable features a snagless, booted connector design made of PVC to protect the clips and provide extra strain relief during installation or frequent plugging and unplugging. This T568B wiring scheme cable supports a bandwidth of 350 mHz and is rated for standard/non-rated environments. The unshielded (UTP) design is suitable for standard Ethernet network deployments requiring reliable connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.54 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152125 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
6-Port Cat5e Network Interface Module
AC1012$59.99
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Cat5e RJ45 Keystone Connector in Brown
WP3450BR$4.49
Cat5e Quick Connect RJ45 Keystone Insert in Ivory
WP3475IV$3.99
Questions about this part
Will this Cat5e cable work with my network interface module?
Yes, this cable is compatible with several modules, including the AC1012 6-Port Cat5e Network Interface Module and the AC1058 8 Port Cat5e Network Interface Module.
What is the wiring scheme for the CG15212?
The CG15212 patch cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Does this cable include a snagless boot for protection?
Yes, this SKU features a snagless, booted connector design that protects the RJ-45 clips from damage during installation.
Is this cable a shielded or unshielded type?
This is an unshielded (UTP) Cat5e cable with a 0.21 in (5.3 mm) cable diameter and stranded copper conductors.
What are the electrical specifications for this patch cable?
This cable has a maximum conductor DC resistance of 89 Ohm/km, a minimum insulation resistance of 100 Ohm/km, and a dielectric strength of 500 MV/m.
