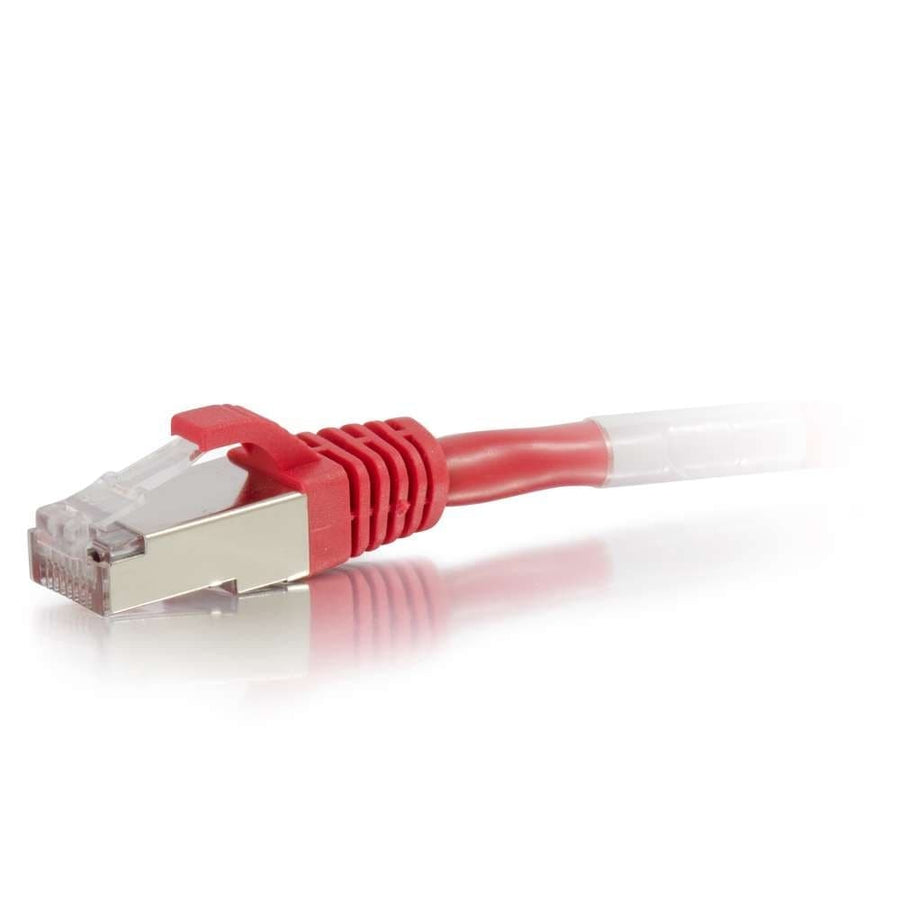

25ft (7.6m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Red
25ft Cat5e shielded STP patch cable in Red, featuring snagless boots and gold-plated RJ45 connectors for EMI/RFI protection
The CG27267 is a 25ft (7.6m) Cat5e shielded STP Ethernet network patch cable finished in red. Designed specifically for network connections in environments prone to EMI/RFI noise, this cable utilizes F/UTP shielding. This construction includes an overall cable foil shield and a drain wire to provide robust protection against electromagnetic and radio frequency interference. The cable features 24 AWG stranded copper conductors and is wired to the TSB 568B (AT+T 258A) standard. Each end is equipped with shielded 50 micron gold-plated RJ45 male connectors, protected by PVC snagless boots that provide extra strain relief and enhance durability. This Red cable is part of the C2G Cat5e Shielded Patch Cable series and is rated for operation in temperatures ranging from -4° to 176°F (-20°C to 80°C). For maximum protection against interference, this cable should be used in conjunction with a C2G Cat5e shielded patch panel and Cat5e shielded keystone jacks to ensure complete end-to-end shielding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.71 lbs (0.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120272670 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Will the CG27267 work in high-interference environments?
Yes, the F/UTP construction uses an overall cable foil shield and a drain wire to protect against EMI/RFI noise in sensitive environments.
What do I need to buy to ensure complete end-to-end shielding?
For maximum protection, use this cable with a Cat5e shielded patch panel and Cat5e shielded keystone jacks to maintain the shield through the connection.
What is the wiring standard for this CG27267 cable?
This patch cable is wired according to the TSB 568B (AT+T 258A) standard.
What is the temperature rating for this red patch cable?
The cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
Does this cable have strain relief on the connectors?
Yes, the cable includes molded PVC snagless boots to provide extra durability and strain relief at the RJ45 connections.
