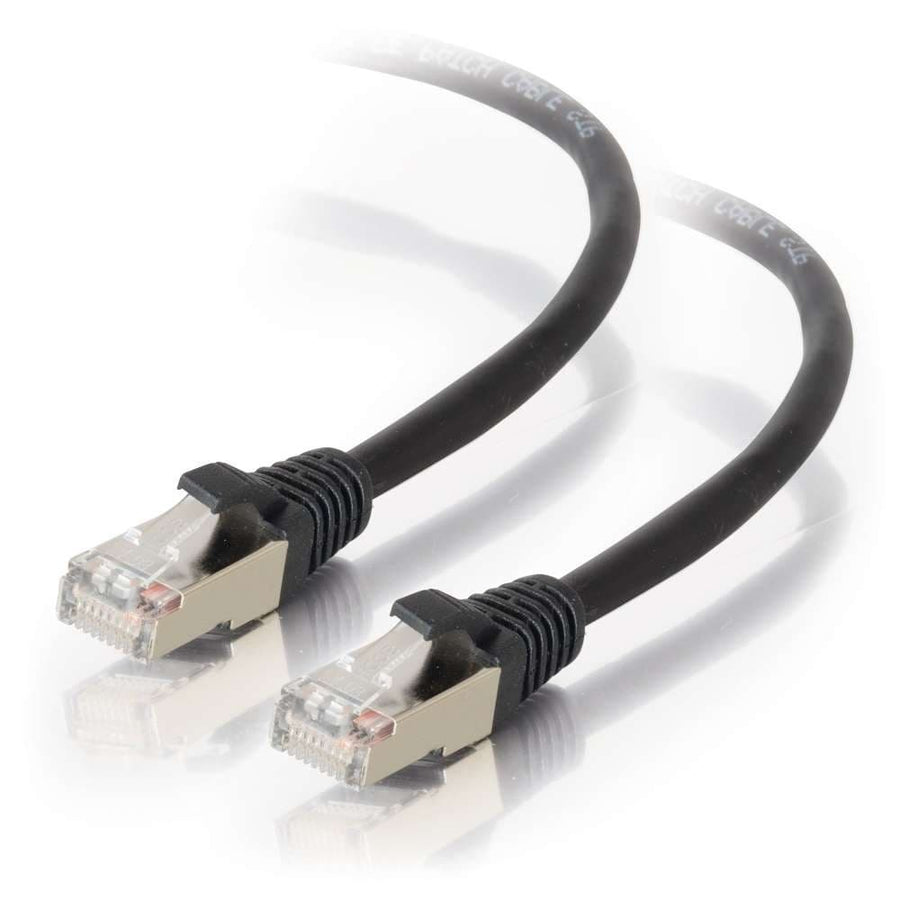

25ft (7.6m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Black
25ft Cat5e shielded STP patch cable in black, designed for EMI/RFI protection in high-noise environments
The C2G CG28695 is a 25ft (7.6 m) Cat5e shielded patch cable specifically engineered for network connectivity in environments prone to EMI/RFI noise and electromagnetic interference. This F/UTP cable features an overall foil shielding and a drain wire to provide robust protection against external interference. The cable is constructed with 24 AWG stranded copper conductors and uses HDPE (High-density Polyethylene) insulation. Each end is fitted with a shielded, 50 micron gold-plated RJ-45 male connector featuring a snagless, booted design to provide extra strain relief and improved durability. Designed to meet or exceed industry standards for NEXT and return loss, this cable utilizes TSB 568B (AT+T 258A) wiring. For maximum protection against electromagnetic interference, this cable should be used alongside a Cat5e shielded patch panel and Cat5e shielded keystone jacks to ensure a complete end-to-end shielded system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.69 lbs (0.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120286950 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
What type of shielding does the CG28695 use?
This is an F/UTP cable featuring overall cable foil shielding and a drain wire to protect against EMI/RFI noise.
Is this cable suitable for high-interference environments?
Yes, the STP shielding and shielded 50 micron gold-plated RJ-45 connectors make it an ideal solution for noisy or EMI-heavy environments.
What is required for full end-to-end shielding?
For maximum protection, pair this cable with a Cat5e shielded patch panel and Cat5e shielded keystone jacks.
What is the wiring standard for this patch cable?
The CG28695 is wired to the TSB 568B (AT+T 258A) standard.
Does this cable come with strain relief?
Yes, it features a molded, snagless boot that provides extra strain relief and increases the cable's overall durability.
