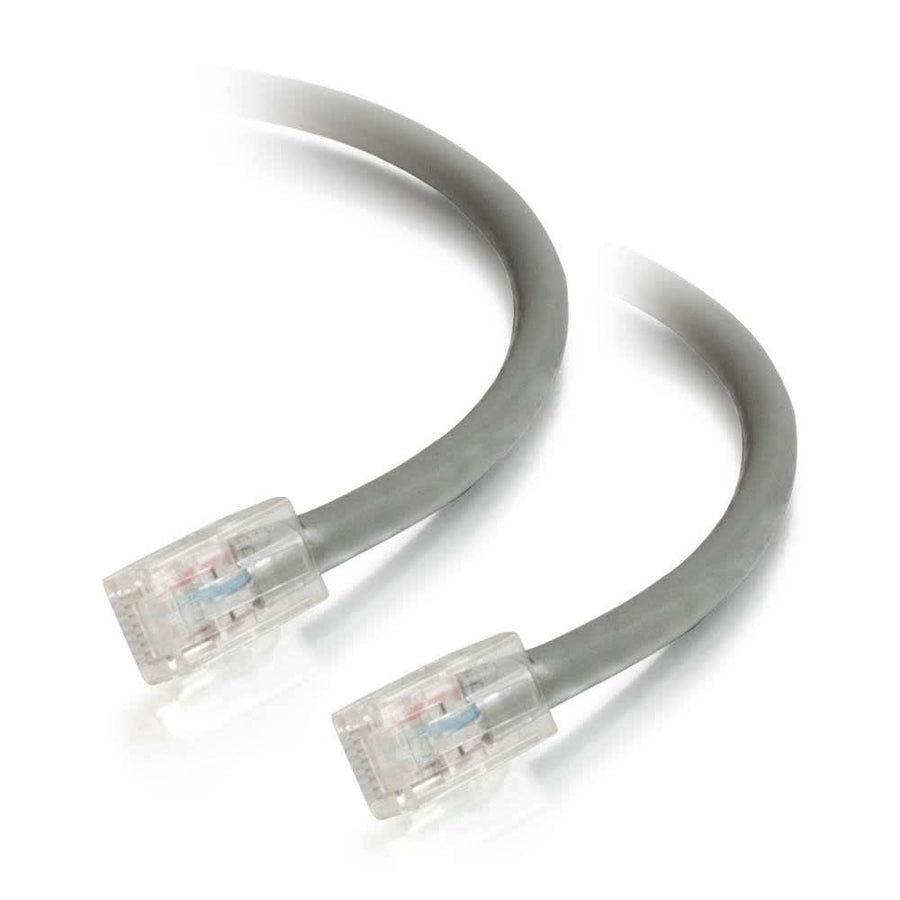

25ft (7.6m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
25 ft Cat5e unshielded UTP Ethernet patch cable, gray color, featuring stranded copper conductors and RJ-45 male connectors
The CG22702 is a 25 ft (7.6 m) Cat5e unshielded UTP Ethernet network patch cable designed for high-speed computer networks requiring bandwidth-intensive voice, data, or video distribution. This cable is built with stranded copper conductors and a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing throughout the entire 25 ft line, which helps reduce impedance and structural return loss (SRL). This cable uses a T568B wiring scheme and features non-booted RJ-45 male connectors on both ends. The 0.21 in (5.3 mm) diameter PVC jacket is CMG In-Wall rated, making it suitable for various installation environments. This gray cable is part of a series that includes up to 150 ft lengths and 10 different colors to facilitate color-coded network organization. This product is covered by a Lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What applications is this Cat5e cable suitable for?
This cable is designed for network adapters, hubs, switches, and routers requiring bandwidth-intensive voice, data, or video distribution.
Is this cable suitable for in-wall installations?
Yes, the jacket is CMG In-Wall rated, making it suitable for use within wall structures.
What is the connector type for the CG22702?
This patch cable features non-booted RJ-45 male connectors on both ends for a standard, streamlined fit.
How can I color-code my network installation with this series?
The CG22702 is available in gray, but the series offers 10 different colors to help organize network infrastructure.
