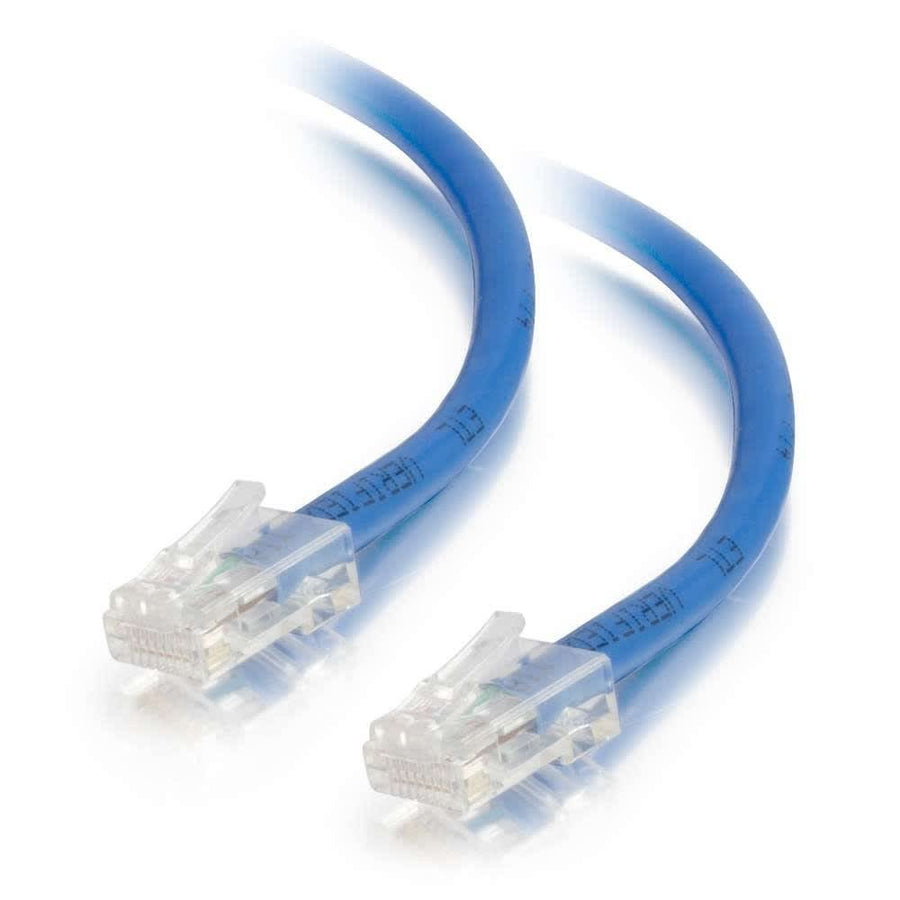

25ft (7.6m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
25ft Cat5e UTP patch cable in blue, featuring stranded copper conductors and RJ-45 male connectors for high-speed networking.
The C2G CG22703 is a 25ft (7.6m) Cat5e non-booted patch cable designed for fast Ethernet computer networks requiring high bandwidth for voice, data, or video distribution. This unshielded twisted pair (UTP) cable is constructed with high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together, which helps preserve twist-spacing throughout the line up to the termination point. This construction significantly reduces impedance and structural return loss (SRL) to ensure reliable connectivity. The cable features RJ-45 male connectors on both ends and follows the T568B wiring scheme. With a 0.21 in (5.3 mm) cable diameter and a PVC jacket, this blue cable is ideal for connecting network adapters, hubs, switches, and routers. This series is available in various lengths up to 150ft and multiple colors to facilitate easy color-coding in complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.58 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What applications is the CG22703 suitable for?
This Cat5e cable is designed for bandwidth-intensive applications including voice, data, and video distribution in fast Ethernet networks.
Does this cable support color-coding for organized installations?
Yes, this blue cable is part of a series available in 10 different colors to help identify different network segments.
What is the construction of the conductors in the CG22703?
The cable uses stranded copper conductors and is unshielded (UTP) to help minimize Near-End Crosstalk (NEXT).
Is the CG22703 TAA compliant?
No, this specific SKU is not TAA compliant, though it holds CE, REACH, and RoHS certifications.
What length and color variants are available in this series?
The CG22703 is a 25ft blue cable, but the series offers lengths up to 150ft and multiple color options like black, gray, and yellow.
