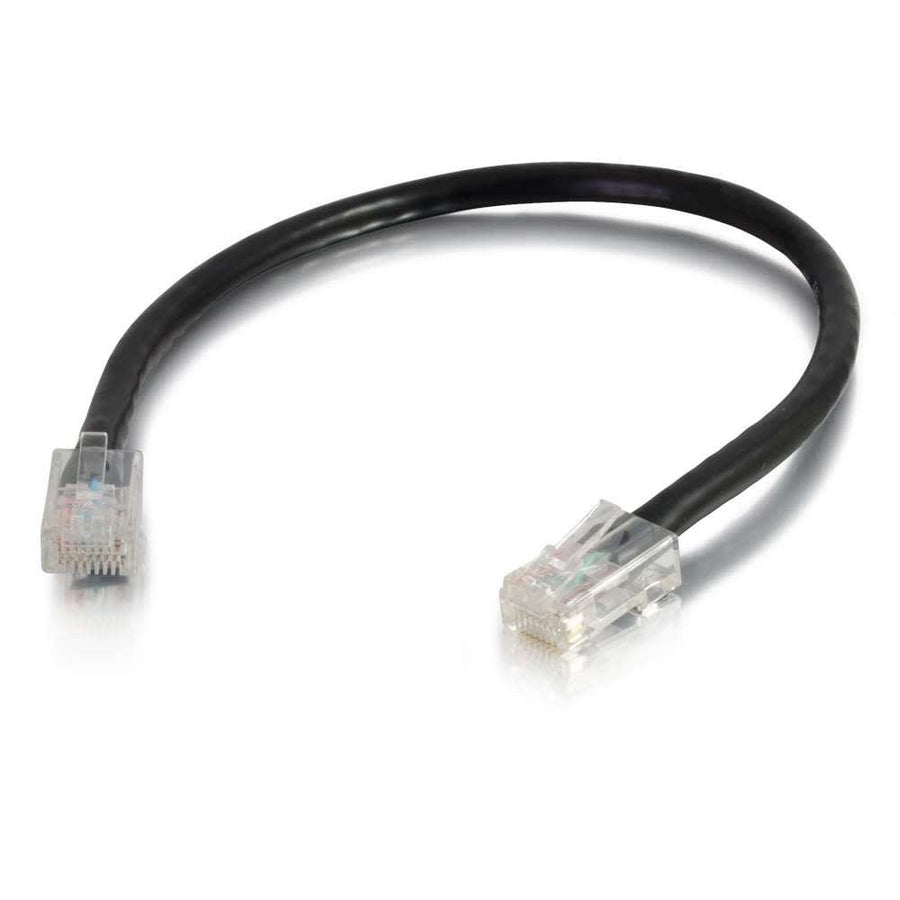

25ft (7.6m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
25ft (7.6m) Cat5e UTP patch cable, 24 AWG stranded copper, non-booted RJ-45 connectors
The C2G CG22707 is a 25ft (7.6m) Cat5e non-booted unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, and video distribution applications. Built with 24 AWG stranded copper conductors, this cable is engineered to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded to maintain consistent twist-spacing through the termination point, which helps reduce impedance and structural return loss (SRL). This cable features a standard PVC jacket and uses a T568B wiring scheme. This specific black SKU is part of a series that includes various colors for network color-coding and lengths up to 150ft. It is intended for use with network adapters, hubs, switches, and routers to support fast Ethernet computer networks. The cable diameter is 0.21 in (5.3 mm). This product is compliant with CE, RoHS, REACH, and TAA-compliant status is not listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the wiring scheme for the C2G CG22707?
This 25ft Cat5e cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is the C2G CG22707 suitable for high-bandwidth video distribution?
Yes, this Cat5e cable is designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution.
What is the conductor material and gauge of this cable?
The CG22707 is constructed with 24 AWG stranded copper conductors to help reduce impedance and structural return loss.
What other colors and lengths are available in this series?
This series is available in 10 different colors for color-coding and comes in various lengths up to 150ft.
Does the C2G CG22707 include a boot on the connectors?
No, this specific model is a non-booted cable, which provides a different physical profile for your installation.
