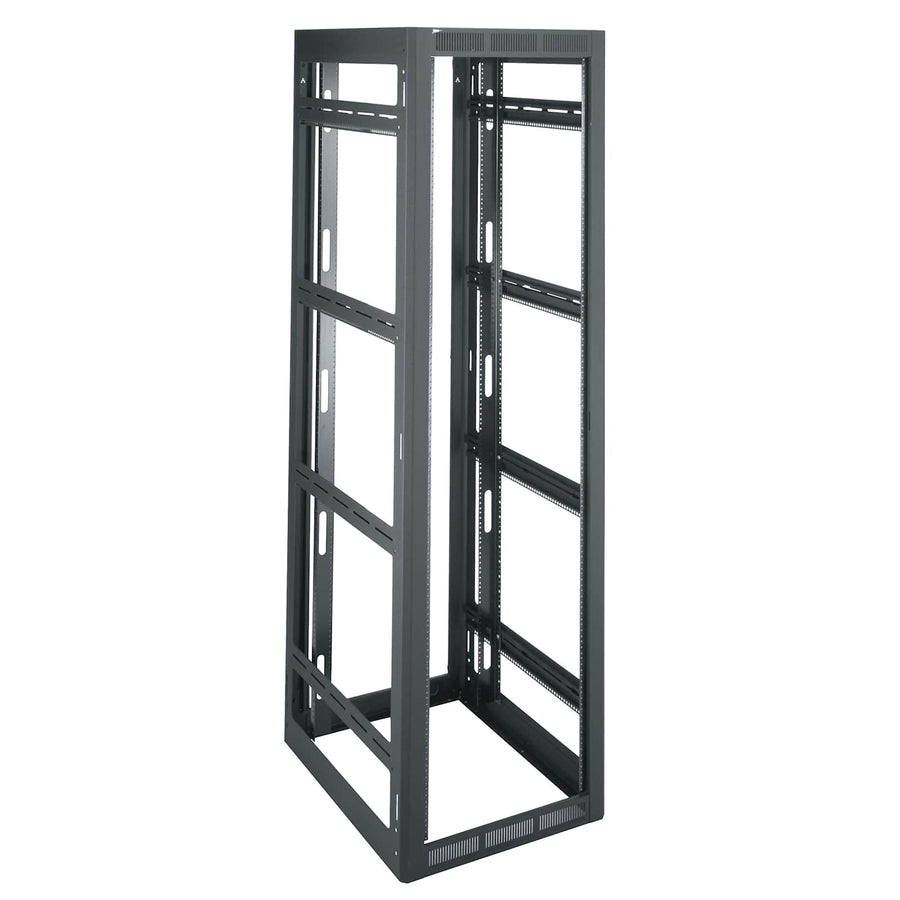

24 RU WRK Series 24-1/4 Inch Wide Rack, 27 Inches Deep without Rear Door
24 RU floor-standing seismic rack, 24.25" wide with 27" depth, designed for heavy equipment and thick cable bundles
The Middle Atlantic WRK-24-27LRD is a 24 RU floor-standing rack designed for demanding environments that require extra space for heavy equipment and thick cable bundles. This 24.25" wide chassis provides an expanded footprint to improve cooling airflow and facilitate side cabling management. It features a 27.63" depth, offering a usable depth of 25.75" for equipment mounting. This series is built with fully welded construction for maximum structural integrity and is seismic rated per ASCE 7-10 with a seismic load capacity of 900 lbs (408.2 kg). The rack includes standard front and rear adjustable 10-32 threaded rackrails with numbered spaces and extra-wide rail features cable pass-throughs to assist with front-to-rear cabling. This specific model is provided without a rear door, allowing for open access or the installation of optional components. It is TAA compliant and UL listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27.63 in (70.2 cm) |
| Height | 48.13 in (122.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 24 RU |
| Shipping Weight | 111.18 lbs (50.4 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 25.75 in (65.4 cm) |
| Usable Height | 42 in (106.7 cm) |
All other specifications 12
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 24.25 in (61.6 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747024191 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 900 lbs (408.2 kg) |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
220 CFM Fan Top with Controller
MW-4QFT-FC$1,110.60
100 CFM Fan Panel, 27dB
UQFP-4$630.90
1 RU BlowerPanel, 100 CFM, 32dB, Anodized & 220-240VAC
IQBP-2A$620.10
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
24 RU Side Panels for 26-27 Inch Deep MRK or WRK Racks
SPN-24-267$615.60
Fan panel, 2 fan, Anodized
FP2$75.60
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Questions about this part
Will this rack fit my heavy equipment and thick cables?
Yes, the 24.25" width provides more space for thick cable bundles and improved airflow compared to standard narrow racks.
Is the WRK-24-27LRD seismic rated?
Yes, it is seismic rated per ASCE 7-10 and has a seismic load capacity of 900 lbs (408.2 kg).
Does this rack include side panels or a rear door?
This specific SKU is shipped without a rear door. You can purchase SPN-24-267 side panels separately.
What is the total weight capacity of this rack?
The rack has a weight capacity of 10,000 lbs (4535.9 kg) and a UL load capacity of 2,500 lbs (1,134 kg).
Which documents are available for submittals?
Technical drawings, 3D CAD files, and the WRK Series Enclosure A&E Specification Sheet are available in the Resources tab.
