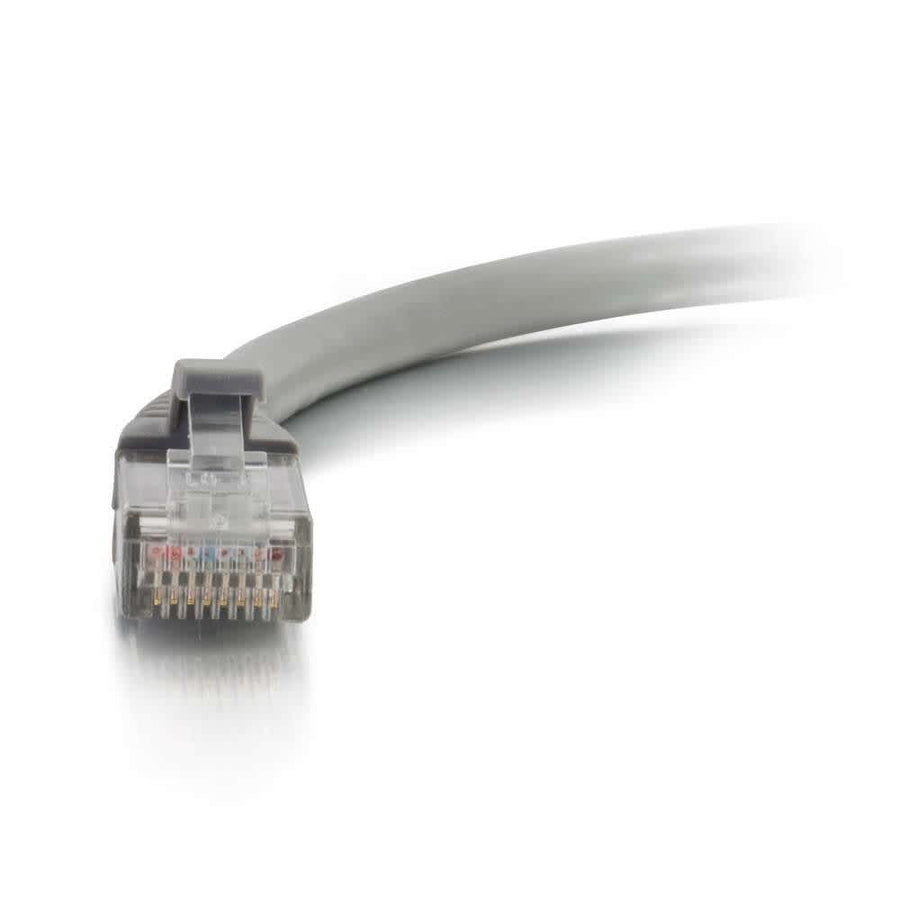

20ft (6.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
20ft Cat6a unshielded UTP patch cable with snagless boots, gray PVC jacket, and 26AWG stranded copper conductors
The C2G CG00668 is a 20 ft (6.1 m) Cat6a snagless unshielded UTP Ethernet network patch cable designed for high-density networking environments. This cable is specifically engineered for 10GBase-T ports and equipment, providing reliable 10 Gigabit data transmission over a 4-pair copper cable. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring performance for connections up to 100 meters. The construction features 26AWG stranded bare copper conductors with HDPE insulation and a PVC jacket. To improve alien crosstalk performance, the design utilizes high-quality plugs and cables. The snagless boots protect the RJ-45 connectors, making this SKU an ideal choice for high-density switch applications where space is limited. Each cable includes an individual length label for rapid identification during installation and is rated for temperatures up to 75°C. This gray patch cable is a component of the C2G Cat6a Patch Cable series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.51 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006688 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Questions about this part
Will the CG00668 work with my 10GbE switch?
Yes, this Cat6a cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission.
What is the maximum distance for this Cat6a patch cable?
This cable enables 10 Gigabit data transmission for connections up to 100 meters.
Is this cable suitable for high-density patch panels?
The snagless boots on the RJ-45 connectors are specifically designed to assist in high-density switch and patch panel applications.
What type of construction does this patch cable have?
This is an unshielded (UTP) cable featuring 26AWG stranded bare copper conductors and an HDPE insulation.
Does this cable meet industry standards?
Every cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
