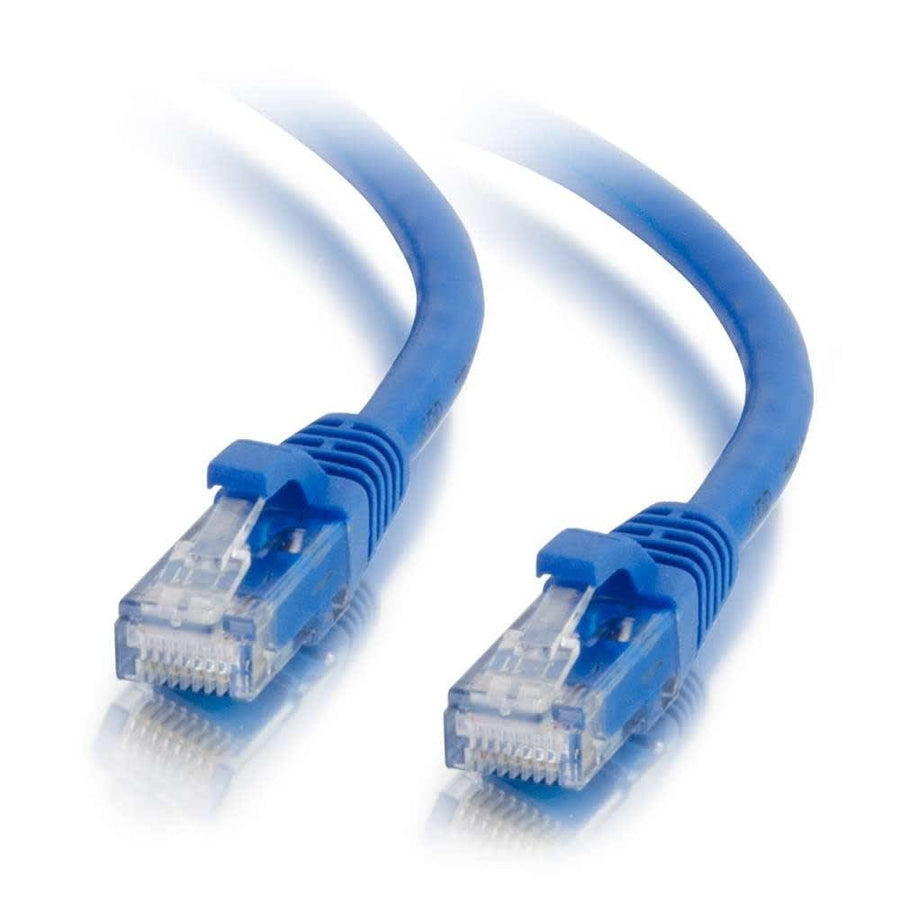

20ft (6.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
20ft Cat6a Snagless Unshielded UTP Ethernet Patch Cable in Blue, designed for 10GBase-T network environments
The C2G CG00702 is a 20ft (6.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-performance data transmission. This blue cable is engineered for use with 10GBase-T ports and equipment, including switches, routers, hubs, network adapters, and patch panels. It supports 10 Gigabit data transmission over a 4-pair copper cable for connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance. Construction includes 26AWG bare copper stranded conductors with HDPE (High-density Polyethylene) insulation. The RJ-45 male connectors feature a PVC snagless boot to protect the locking tabs in high-density switch applications. For easy identification in complex network environments, each individual cable includes a length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.52 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007029 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00736$28.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will the CG00702 work with my 10GbE switch?
Yes, this Cat6a cable is designed for use with 10GBase-T ports, making it suitable for high-speed switches, routers, and network adapters.
Is the CG00702 suitable for high-density patch panels?
The snagless connector hood protects the RJ-45 tabs, which is specifically beneficial for maintaining cable integrity in high-density switch and patch panel applications.
What is the difference between this and the black CG00736 SKU?
The CG00702 is the blue version of this 20ft Cat6a cable, whereas the CG00736 is the same cable in a black finish.
What accessories are required for a complete installation?
This cable can be used with the WP246A Cat6a 24-Port Rack Mount Patch Panel or various Cat6a Keystone Inserts like the WP346ABK (Black) or WP346ABE (Blue).
Does this cable meet Cat6a performance standards?
Yes, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements to ensure reliable data transmission.
