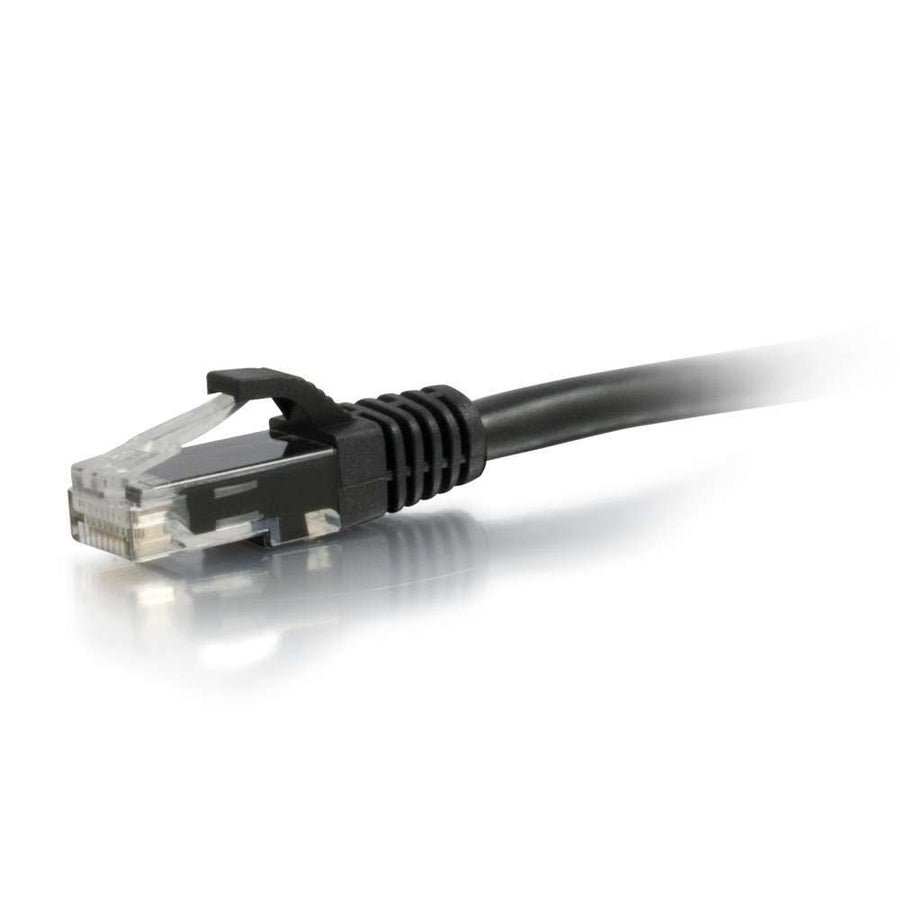

20ft (6.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
20ft (6.1m) Black Cat6a Snagless Unshielded UTP Ethernet Patch Cable for 10GBase-T network connections
The C2G CG00736 is a 20ft (6.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for 10GBase-T environments. This cable supports 10 Gigabit data transmission over a 4-pair copper configuration, making it suitable for high-speed connections with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels for distances up to 100 meters. It is constructed with 26AWG bare copper conductors and stranded wire to improve performance. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. The snagless, booted RJ-45 connectors are designed specifically for high-density switch applications to protect the jack from excessive tension. This black cable features a PVC jacket and HDPE insulation, with an overall cable diameter of 0.24 in (6 mm). The wiring follows the 568B scheme and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.54 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007364 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00702$28.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, the CG00736 supports 10GBase-T transmission over a 4-pair copper cable for distances up to 100 meters.
Is the CG00736 suitable for high-density network switches?
Yes, this cable features a snagless, booted connector design specifically to facilitate use in high-density switch applications.
What is the difference between this and the blue version?
The CG00736 is the black version; the CG00702 is the identical 20ft Cat6a snagless cable in blue.
What testing standards does this patch cable meet?
This cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a channel requirements.
What tools are required for installation?
No specialized installation tools are required for this pre-terminated patch cable; it is a plug-and-play solution.
