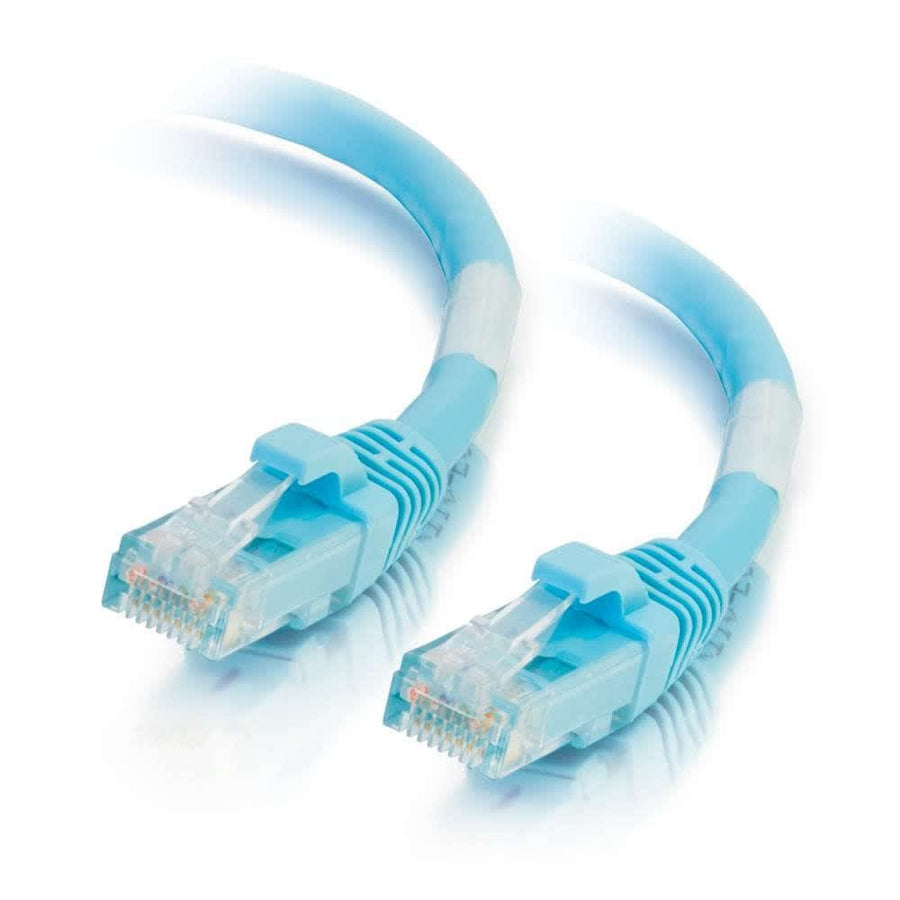

20ft (6.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua
20ft Cat6a Unshielded UTP Ethernet patch cable in Aqua with snagless boots for high-density switch applications
The CG00770 is a 20ft (6.1 m) Cat6a Unshielded UTP Ethernet network patch cable finished in Aqua. This cable is designed to support 10GBase-T equipment, including network adapters, hubs, switches, routers, and patch panels, enabling 10 Gigabit data transmission over a 4-pair copper cable for connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved performance against alien crosstalk. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, the cable features PVC jacket material and PVC connector hoods. The snagless, booted RJ-45 male connectors are specifically designed for high-density switch applications to protect the connection during installation. Each cable includes an individual length label for easy identification in organized rack environments. This series is available in various colors and lengths to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.51 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007708 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the CG00770 work with my 10GbE switch?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment, including hubs, switches, and routers, supporting 10 Gigabit transmission.
What is the wiring scheme for the CG00770?
This patch cable uses the 568B wiring scheme and features 26AWG bare copper stranded conductors.
Can I use this in high-density patch panels?
The snagless boot design is specifically intended for high-density switch applications to protect the RJ-45 connectors.
What compatible accessories are available for this series?
This cable is compatible with various hardware including the WP246A 24-Port Rack Mount Patch Panel and several Cat6a Quick Connect Keystone Inserts.
What certifications does this cable carry?
This cable is CE, REACH, and RoHS compliant and is fully tested to ANSI/TIA 568 C.2 Cat6a channel requirements.
