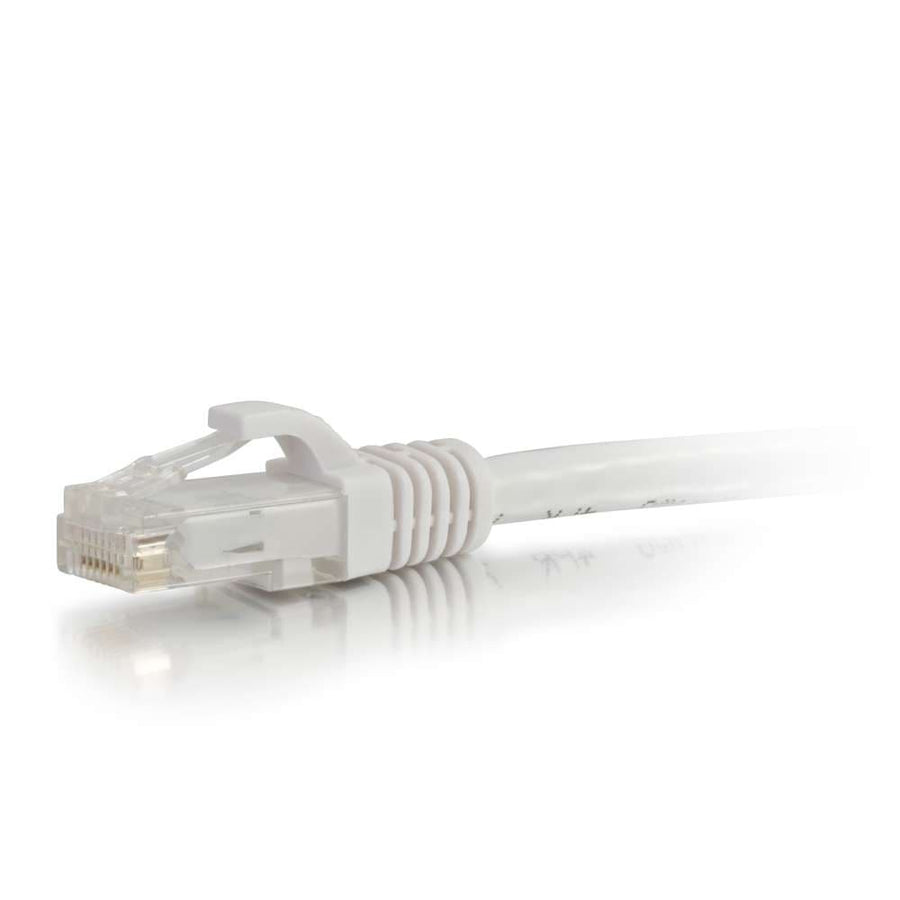

20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - White
White Cat6 snagless patch cable, 20ft (6.1m) length, featuring unshielded UTP construction and copper conductors
The C2G CG04041 is a 20ft (6.1m) Cat6 snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution. This white cable is engineered for fast Ethernet and Gigabit computer networks, meeting all Cat6 TIA/EIA standards. It utilizes high-quality stranded copper conductors and features a 24 AWG wire gauge to help minimize Near-End Crosstalk (NEXT) levels. To ensure high-performance connectivity, each individual pair is bonded together to maintain twist-spacing through to the termination point, which drastically reduces both impedance and structural return loss (SRL). The snagless, booted connector design protects the RJ-45 clips from damage during repeated plugging and unplugging, providing additional strain relief. This 0.22 in (5.7 mm) diameter cable is built with a PVC jacket and PVC connector hoods. For installers requiring different aesthetics or organization, this SKU is available in various other colors through the C2G Cat6 Snagless Patch Cable series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.7 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.56 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040415 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03987$16.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Questions about this part
Will this Cat6 cable work with my network switch or patch panel?
Yes, the CG04041 uses standard RJ-45 male connectors and is compatible with Cat6 equipment such as the 48-Port Rack Mount Patch Panel (48845CC6) or the 24-Port Rack Mount Patch Panel (24845CC6).
What is the difference between this and the black version?
The CG04041 is the white version of this cable; the identical black version is available under SKU CG03987.
Is this cable suitable for high-bandwidth video applications?
Yes, this Cat6 cable is designed for bandwidth-intensive video distribution and meets TIA/EIA standards for Cat6 performance.
What is the maximum length available in this series?
The C2G Cat6 Snagless Patch Cable series is available in lengths up to 150ft.
What certifications does this cable meet?
This product is compliant with NDAA 889, REACH, RoHS, TSCA, and Prop 65 standards.
