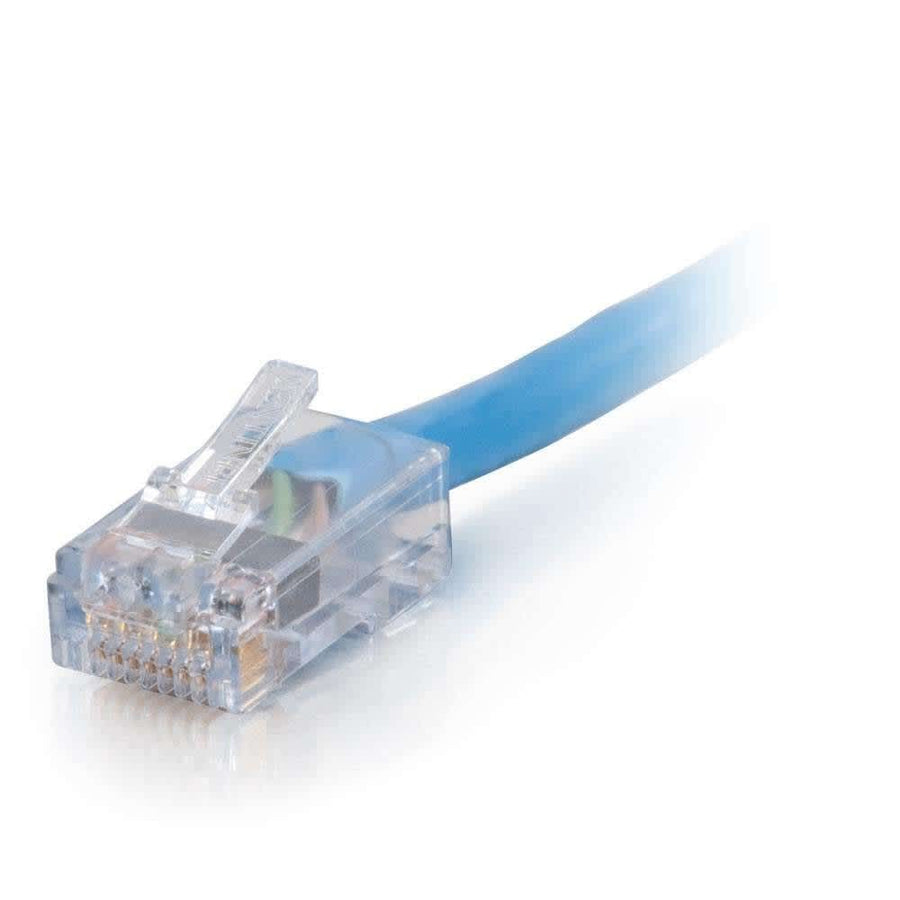

20ft (6.1m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Blue
20ft Blue Cat6 UTP plenum patch cable, CMP rated with 23AWG stranded copper and gold-plated RJ45 connectors
The C2G CG15284 is a 20ft (6.1m) Cat6 Unshielded Twisted Pair (UTP) patch cable specifically designed for environments requiring plenum-rated cabling. This Blue jacketed cable is CMP and FT6 rated, making it suitable for routing through plenum spaces such as the areas above dropped ceilings or under raised floors in commercial buildings like schools and hospitals. The cable features 23AWG stranded copper conductors and is tested to 550MHz to support bandwidth-intensive voice, data, and video distribution. Each end is terminated with 50 micron gold-plated RJ-45 male connectors. This non-booted design is built to TIA/EIA-568-C.2 standards, helping to minimize Near-End Crosstalk (NEXT) and reduce impedance and structural return loss (SRL). This TAA-compliant cable is a reliable solution for high-performance networking in restricted air-handling spaces.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.54 lbs (0.3 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152842 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Where can I use this Cat6 cable?
This cable is CMP and FT6 rated, making it suitable for plenum spaces like the area above dropped ceilings or under raised floors in commercial buildings.
What is the maximum frequency for this cable?
This C2G Cat6 cable is tested to 550MHz, ensuring it can handle bandwidth-intensive voice, data, and video distribution applications.
Is this cable TAA compliant?
Yes, the CG15284 is TAA compliant and also carries NDAA 889, REACH, RoHS, and TSCA certifications.
What kind of connectors are on this cable?
The cable is terminated with 50 micron gold-plated RJ-45 male connectors in a non-booted configuration.
Does this cable support high-speed data?
Yes, it is a Cat6 UTP cable designed to meet TIA/EIA-568-C.2 standards, which helps reduce Near-End Crosstalk (NEXT) and structural return loss.
