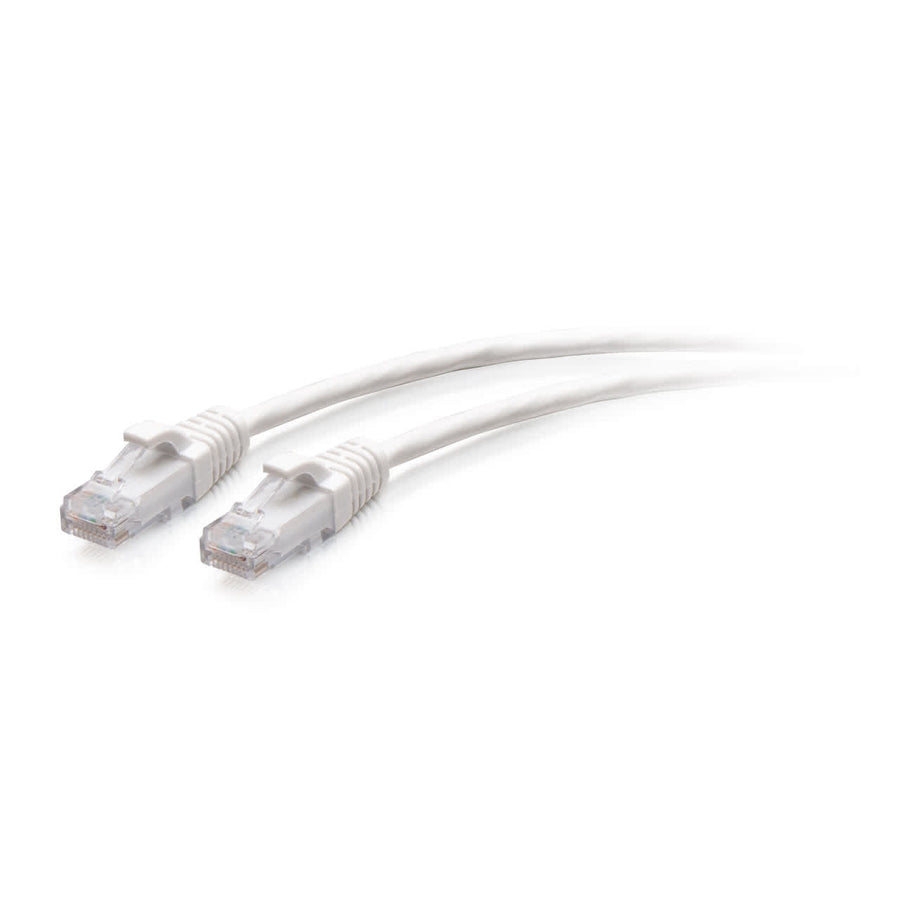

1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - White
1ft Cat6a slim patch cable in white, featuring 28AWG stranded copper conductors and snagless UTP connectors
The C2G30181 is a 1 ft (0.3 m) Cat6a slim unshielded UTP patch cable designed for high-density cabling environments. This white Ethernet cable utilizes 28AWG stranded copper conductors, significantly reducing the cable diameter to 0.19 in (4.8 mm) ± 0.15 mm (0.01 in). This slim profile increases airflow in crowded racks and provides greater flexibility in tight spaces such as datacenters or large conference rooms. The cable supports data transfer rates up to 10 Gbps and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. It features RJ-45 male connectors with gold-plated contacts and molded, snagless PVC boots for enhanced strain relief and protection during installation. The unshielded (UTP) construction is suitable for applications leveraging HDBaseT technology and provides a reliable connection for Power over Ethernet (PoE) and VoIP deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301813 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the C2G30181 work for 10Gbps high-speed data transfers?
Yes, this Cat6a cable supports data transfer rates up to 10 Gbps, meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 performance standards.
Is this cable suitable for high-density rack installations?
Yes, the 0.19 in (4.8 mm) slim diameter and 28AWG construction are specifically designed to increase airflow and flexibility in tight spaces like datacenters.
What is the difference between this and standard Cat6 cables?
This Cat6a slim cable provides up to five times more bandwidth than Cat5e and supports higher data rates than standard Cat6, while its 28AWG profile is much thinner for easier routing.
Does this cable support Power over Ethernet (PoE)?
Yes, the Cat6a technology used in this cable makes it suitable for Power over Ethernet (PoE) and VoIP (Voice over IP) applications.
What documentation is available for this cable for submittals?
You can access the Cat6a Slim Patch Cable Series Datasheet and the C2G Ethernet Patch Cable Matrix via the product's technical documents.
