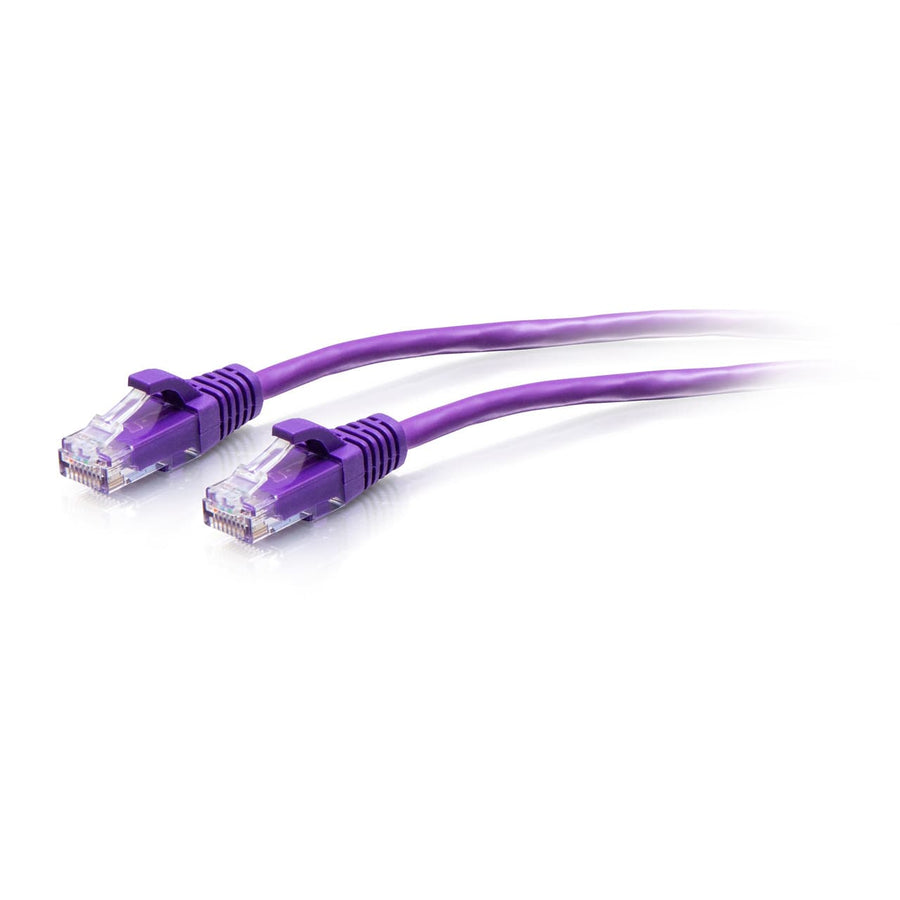

1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Purple
1ft purple Cat6a slim UTP patch cable, 28AWG construction for high-density networking and improved airflow
The C2G30188 is a 1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in purple. This cable is engineered for high-density cabling environments, such as datacenters or large conference rooms, where space is at a premium. It features 28AWG stranded copper conductors, which significantly reduce the cable diameter to 0.19 in (4.8 mm) ± 0.15mm (0.01 in). This slim profile allows for increased airflow in crowded racks and provides greater flexibility for tight-space installations. Each RJ-45 male connector is protected by a molded PVC snagless boot, which provides strain relief and prevents accidental snags during installation. The cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. This purple patch cable is an ideal solution for Power over Ethernet (PoE) and VoIP applications that require high bandwidth and reliable connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301882 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum data rate for the C2G30188?
The C2G30188 supports data transfer rates up to 10 GBPS, making it suitable for high-speed networking and HDBaseT technology.
How does the slim 28AWG design help in high-density racks?
The 28AWG construction results in a 0.19 in (4.8 mm) diameter, which increases airflow in crowded enclosures and provides more flexibility in tight spaces.
What is the connector type on this patch cable?
This cable features RJ-45 male connectors with gold-plated contacts and a snagless, booted PVC hood for added strain relief.
Is this cable suitable for PoE applications?
Yes, the Cat6a technology used in this cable makes it an effective choice for Power over Ethernet (PoE) and VoIP environments.
What electrical standards does the C2G30188 meet?
This cable meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
