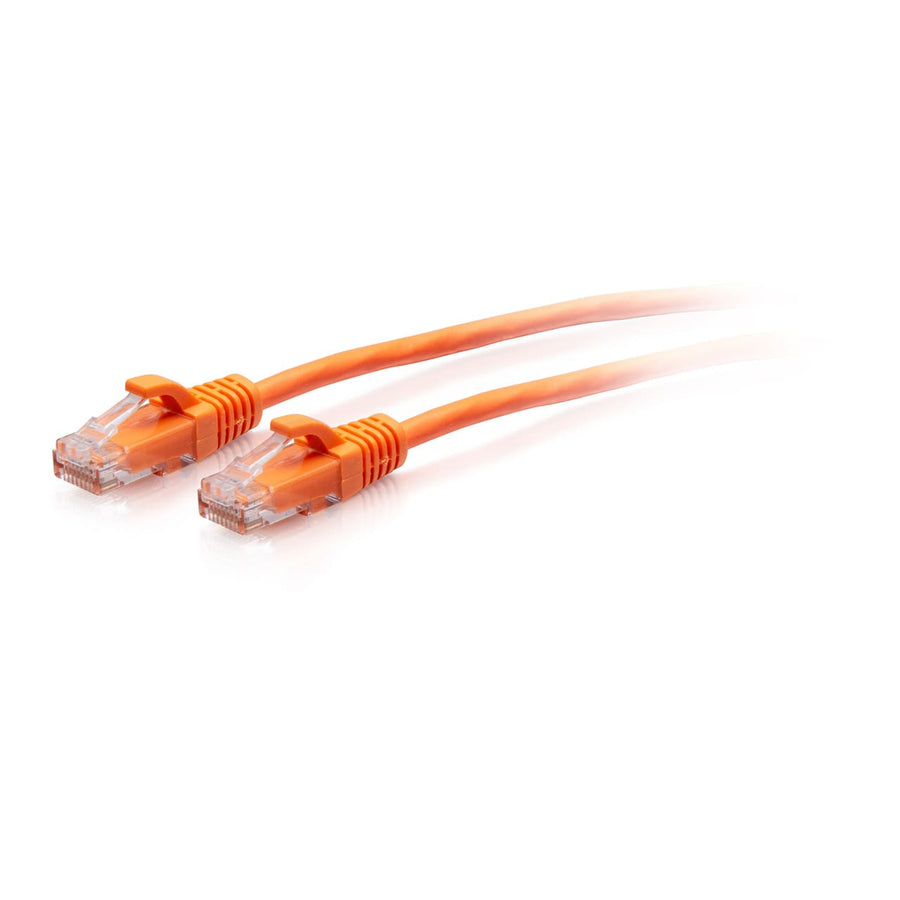

1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Orange
1ft orange Cat6a slim UTP patch cable with 28AWG snagless connectors for high-density networking
The C2G30174 is a 1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in orange, engineered specifically for high-density cabling environments. This 28AWG slim cable is designed to facilitate better airflow in crowded racks and datacenters by reducing the overall cable diameter to 0.19 in (4.8 mm) ± 0.15mm (0.01 in). By utilizing 28AWG stranded copper conductors, this cable provides the flexibility required for tight-space installations where standard Cat6 cables may be too bulky. It supports data transfer rates up to 10 GBPS and is suitable for applications requiring Power over Ethernet (PoE) or VoIP. The snagless, molded PVC boots provide strain relief and prevent accidental disconnects during installation. This series meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301745 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work for high-density rack installations?
Yes, the 28AWG slim design has a 0.19 in (4.8 mm) diameter, which increases airflow and provides the flexibility needed for crowded datacenter or conference room racks.
Does the C2G30174 support 10Gbps speeds?
Yes, this Cat6a patch cable is rated for data transfer rates up to 10 GBPS and is compliant with ISO/IEC 11801-1 and ANSI/TIA-568.2-D requirements.
What is the difference between this and a standard Cat6 cable?
This slim Cat6a cable uses 28AWG conductors, resulting in a smaller footprint and improved airflow compared to standard diameter Cat6 cables, while supporting much higher bandwidth.
What is needed to complete a patch panel installation with this cable?
You can use this cable with compatible components like the WP246A 24-Port Rack Mount Patch Panel or the WP48RM 48-Port Keystone Rack Mount Patch Panel.
Is this cable suitable for PoE applications?
Yes, the Cat6a technology and 28AWG construction make this cable suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) environments.
