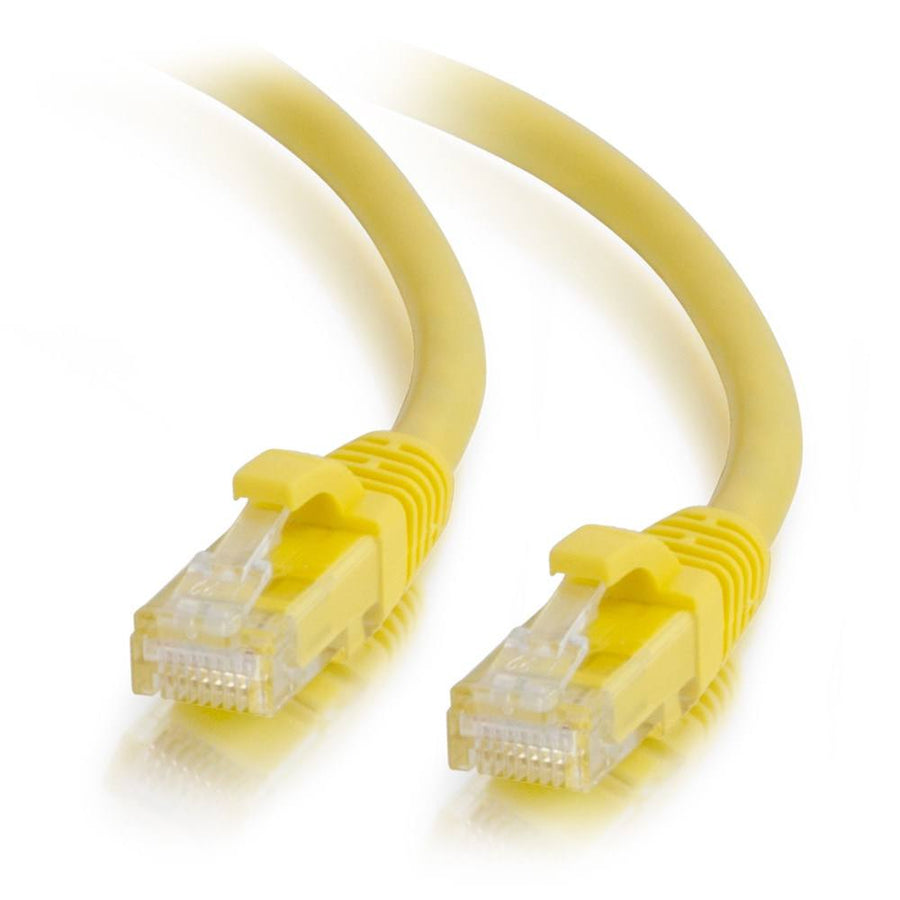

1ft (0.3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
1ft (0.3m) Cat6a Snagless Unshielded UTP Ethernet Patch Cable in Yellow for 10 Gigabit data transmission
The CG50741 is a 1 ft (0.3 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-density networking environments. This yellow cable supports 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels, enabling 10 Gigabit data transmission over a 4 pair copper cable for connections up to 100 meters. Constructed with 26AWG (7/0.16) bare copper stranded conductors and HDPE insulation, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. The design includes a PVC jacket and PVC connector hoods with a snagless, booted style to protect the RJ-45 male connectors. This construction provides improved alien crosstalk performance and is ideal for use in high-density switch applications where cable management is critical. Individual length labels are included on each cable for easy identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507413 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this CG50741 cable support 10 Gigabit Ethernet?
Yes, this Cat6a patch cable supports 10 Gigabit data transmission for 10GBase-T ports and equipment.
What type of connectors does the CG50741 use?
It features two RJ-45 male connectors with a snagless, booted design and PVC hoods.
Is this cable suitable for high-density switch environments?
Yes, the snagless hood design is specifically intended to assist in high-density switch applications.
What is the wiring scheme for this C2G patch cable?
The CG50741 uses the 568B wiring scheme.
Which C2G products are compatible with this cable?
This cable is compatible with various accessories including the WP346AYE Yellow Cat6a Quick Connect RJ45 Keystone Insert and the WP246A Cat6a 24-Port Rack Mount Patch Panel.
