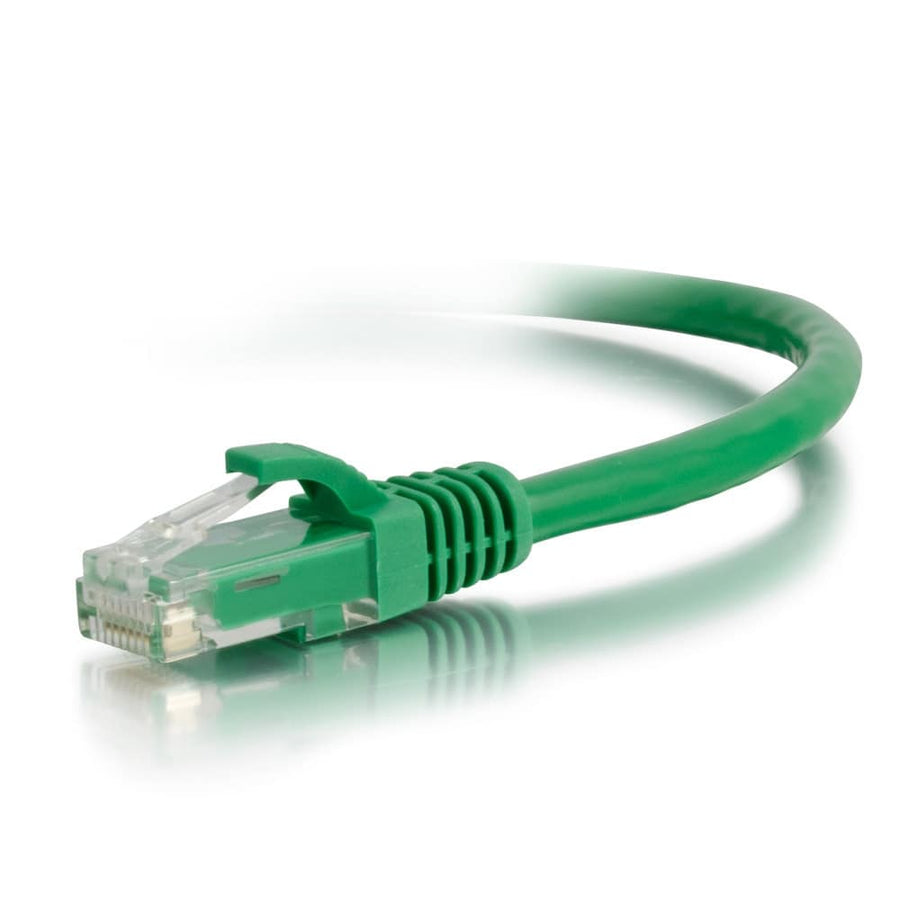

1ft (0.3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
1ft (0.3m) Cat6a Snagless UTP Ethernet patch cable in green, designed for 10GBase-T high-density environments
The C2G CG50779 is a 1ft (0.3m) green Cat6a Snagless UTP Ethernet patch cable designed for high-density network environments. This unshielded patch cable supports 10 Gigabit data transmission over a 4-pair copper cable, making it suitable for connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for 10GBase-T ports and equipment. This includes network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. The cable features 26AWG (7/0.16) bare copper stranded conductors and HDPE insulation. For ease of use in crowded racks, the cable utilizes a snagless, booted connector design with PVC hoods. Each individual cable is marked with a length label for quick identification during installation. This series is available in a variety of colors to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507796 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work for 10GbE networking?
Yes, the CG50779 is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 4-pair copper up to 100 meters.
Is this cable suitable for high-density switches?
Yes, the snagless hood design is specifically intended to simplify cable management in high-density switch applications.
What is the wiring scheme for the CG50779?
This patch cable uses the 568B wiring scheme and features 26AWG stranded copper conductors.
Does this cable meet Cat6a standards?
Yes, it is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements for reliable performance.
What other items are compatible with this Cat6a series?
It is compatible with various Legrand AV accessories, including the WP246A 24-Port Rack Mount Patch Panel and the WP346AGN Green Cat6a Keystone Insert.
