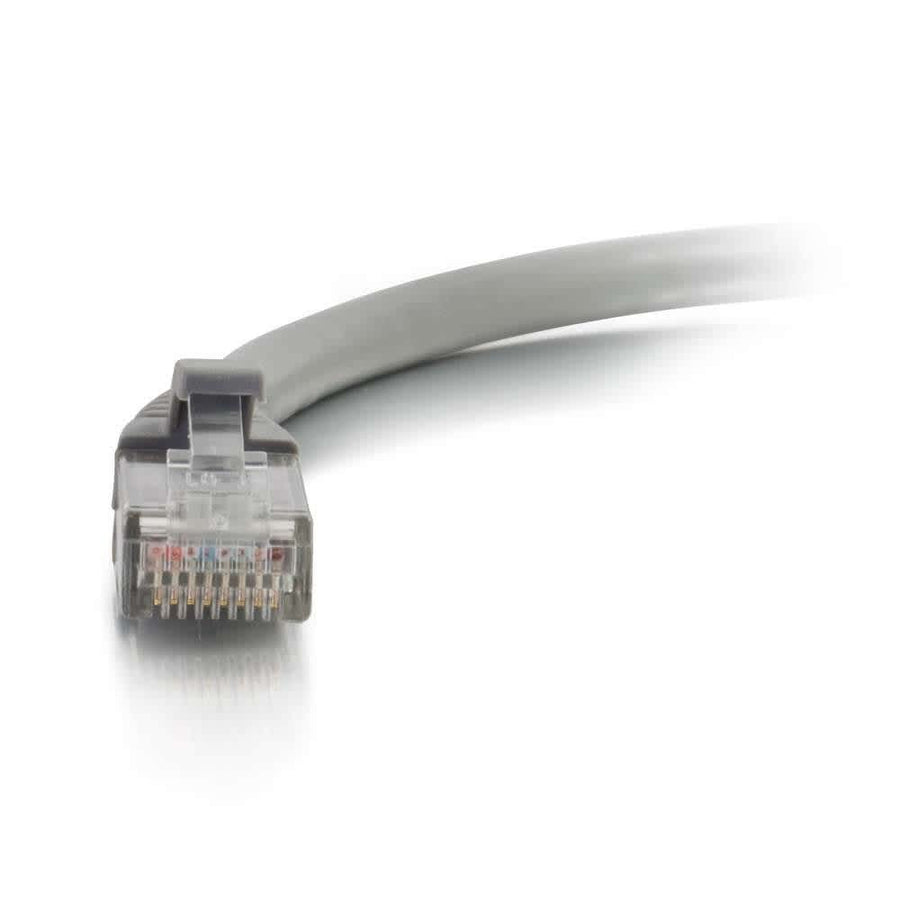

1ft (0.3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
1ft Cat6a Unshielded UTP Ethernet patch cable in Gray with snagless boots for high-density switch environments
The C2G CG00655 is a 1ft (0.3m) Cat6a Unshielded UTP Ethernet patch cable designed to support 10GBase-T equipment. This cable enables 10 Gigabit data transmission over a 4 pair copper cable for connections up to 100 meters. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. The 6mm diameter cable features PVC jacket material and PVC connector hoods. To facilitate high-density switch applications, the RJ-45 male connectors include snagless, booted hoods that protect the locking tabs. This gray cable utilizes a 568B wiring scheme and is rated for temperatures up to 75°C. It is an ideal solution for connecting network adapters, hubs, switches, routers, and patch panels where short-reach, high-speed connectivity is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 6mm |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006558 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
