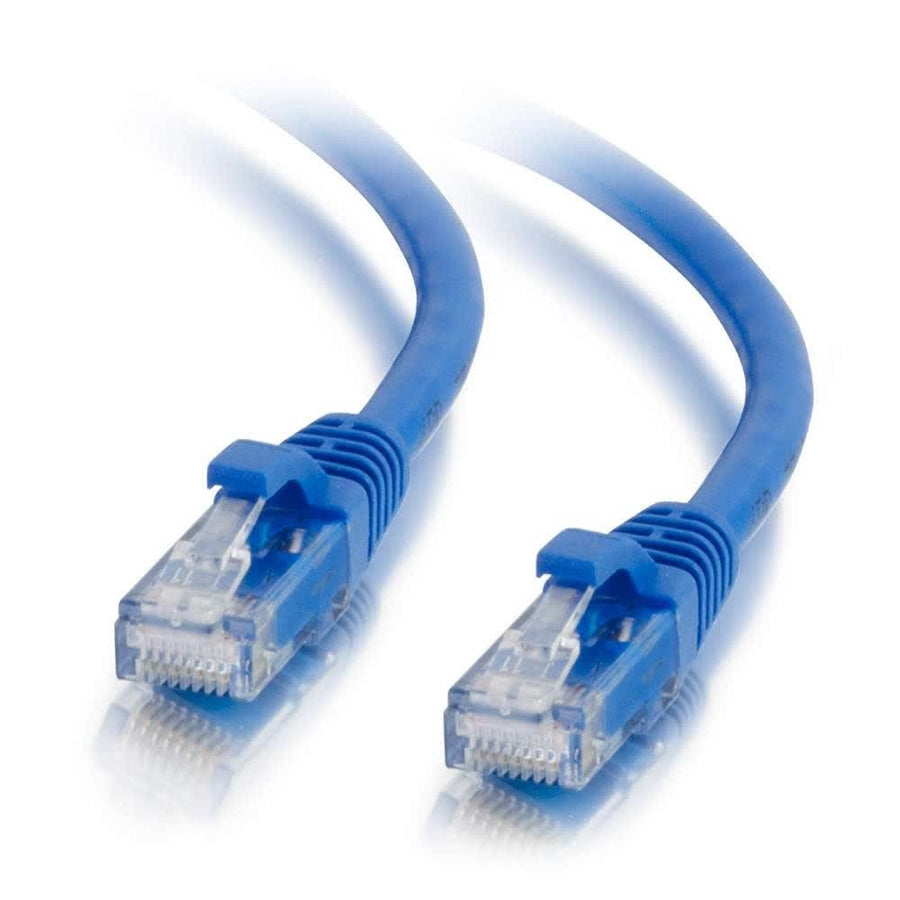

1ft (0.3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
1ft (0.3m) Blue Cat6a Unshielded UTP Patch Cable, snagless design for high-density switch applications and 10GBase-T equipment
The C2G CG00689 is a 1ft (0.3m) blue Cat6a patch cable designed to support 10GBase-T ports and high-speed networking equipment. This Unshielded UTP (UTP) cable enables 10 Gigabit data transmission over a 4-pair copper construction, facilitating connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for network adapters, hubs, switches, routers, and patch panels. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable provides improved alien crosstalk performance. The snagless PVC connector hoods are specifically designed for high-density switch environments where space is limited. This cable uses a 568B wiring scheme and is rated for temperatures up to 75°C. The jacket is made of PVC and features a 0.24 in (6 mm) diameter. For ease of use in large deployments, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006893 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this CG00689 cable work with my 10GbE switch?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and equipment, providing the necessary performance for 10 Gigabit data transmission.
What is the wiring scheme for the CG00689?
This patch cable uses the 568B wiring scheme and features RJ-45 male connectors on both ends.
Is the CG00689 suitable for high-density patch panels?
Yes, the snagless hood design is specifically intended to facilitate connections in high-density switch and patch panel applications.
What components are compatible with this Cat6a cable?
It is compatible with several components including the WP246A Cat6a 24-Port Rack Mount Patch Panel and the AC106A6 6 Port Cat6A Network Interface Module.
Does this cable support 10 Gigabit speeds?
Yes, it is designed for 10 Gigabit Ethernet, allowing for connections up to 100 meters using the 4-pair copper conductor configuration.
