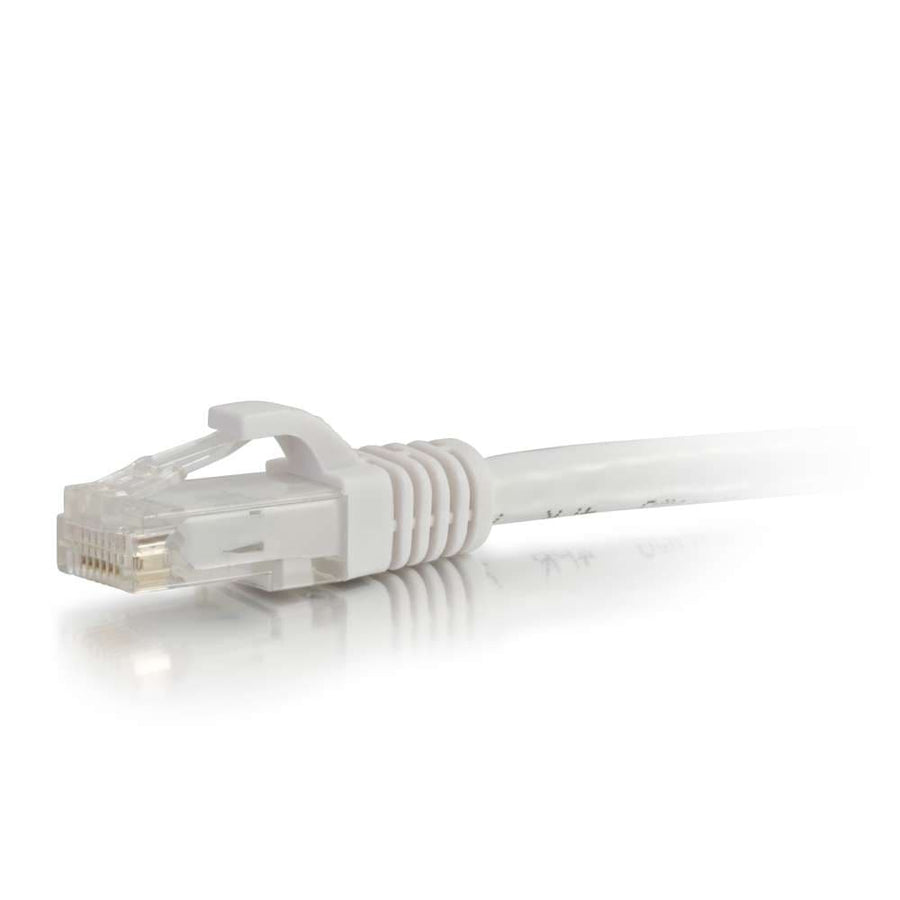

1ft (0.3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - White
White 1ft (0.3m) Cat6 UTP snagless patch cable with RJ-45 male connectors
The C2G CG27160 is a 1ft (0.3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-performance, short-distance network connections. This white cable features stranded copper conductors and a 24 AWG wire gauge to support Category 6 performance applications. Each end is terminated with an RJ-45 male connector protected by a PVC snagless boot to prevent accidental disconnection during installation or maintenance. The cable utilizes a T568B wiring scheme and is constructed with a PVC jacket and PVC connector hoods. Designed for unshielded (UTP) environments, this cable maintains electrical integrity with a 100 ohm impedance and 5600pf/100m capacitance. It is built to meet specific electrical characteristics, including a maximum propagation delay of 545ns/100m and a delay skew of 45ns/100m. This product is NDAA 889 compliant and carries CE, REACH, RoHS, Prop 65, and TSCA certifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271604 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the CG27160?
This Cat6 patch cable is wired using the T568B scheme.
Is the CG27160 suitable for high-density patch panels?
Yes, it is compatible with accessories like the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6).
What is the maximum propagation delay for this cable?
The cable features a maximum propagation delay of 545ns/100m.
What type of shielding does this cable have?
The CG27160 is an Unshielded (UTP) cable with a standard non-rated PVC jacket.
Does this cable support Category 6 performance?
Yes, this is a dedicated Cat6 cable designed for Category 6 performance applications.
