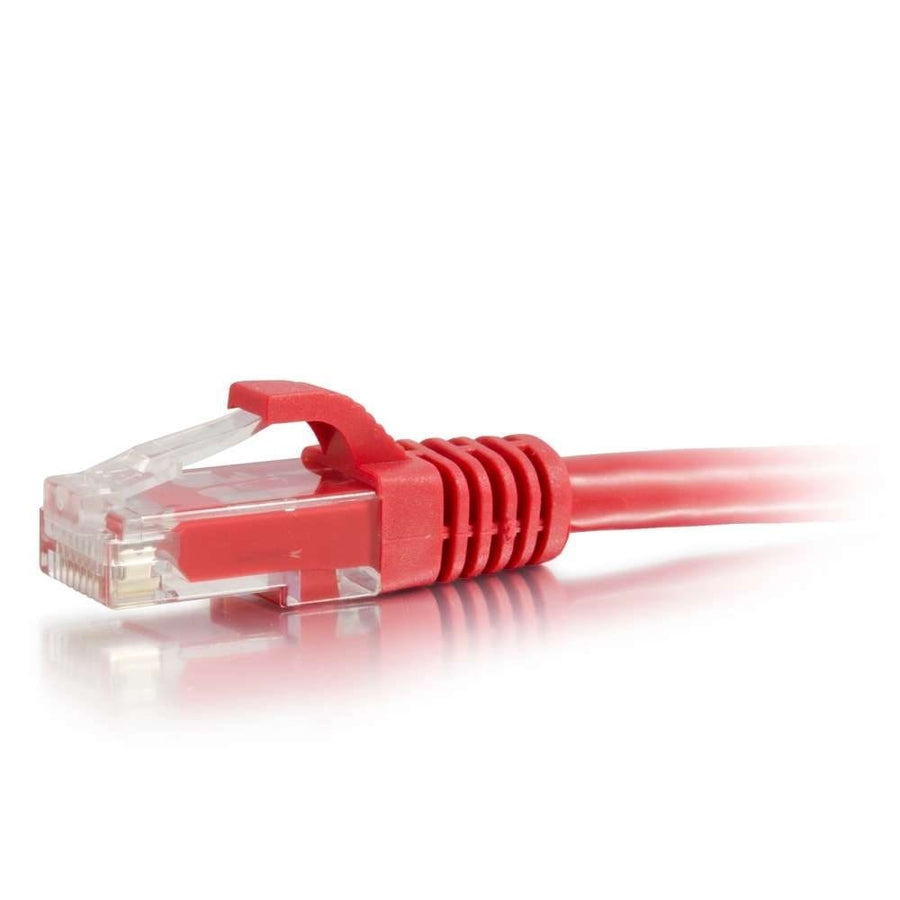

1ft (0.3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Red
1ft (0.3m) Red Cat6 Snagless UTP Ethernet Patch Cable with stranded copper conductors
The C2G CG27180 is a 1ft (0.3m) Red Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-density connectivity in rack or cabinet environments. This Cat6 cable features 24 AWG stranded copper conductors to provide reliable signal transmission. It utilizes a T568B wiring scheme and is equipped with two RJ-45 male connectors. Each connector is protected by a PVC snagless boot, which prevents accidental damage to the wire during installation and handling. This unshielded (UTP) cable has a diameter of 0.24 in (6.2 mm) and is housed in a standard PVC jacket. Electrical characteristics include an impedance of 100 ohms and a capacitance of 5600pf/100m. This cable is compliant with NDAA 889, RoHS, REACH, and is CE certified, making it suitable for various professional networking deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271802 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the C2G CG27180?
This patch cable is terminated using the T568B wiring scheme for standard Ethernet connectivity.
Is this Cat6 cable shielded or unshielded?
The CG27180 is an unshielded (UTP) cable, which is suitable for environments where crosstalk is not a primary concern.
What are the electrical specifications for this Cat6 cable?
This cable features an impedance of 100 ohms and a propagation delay of 545ns/100m (maximum).
What is the diameter of the cable jacket?
The cable has a diameter of 0.24 in (6.2 mm).
Is the CG27180 compatible with rack mount patch panels?
Yes, it is compatible with various C2G hardware, such as the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6).
