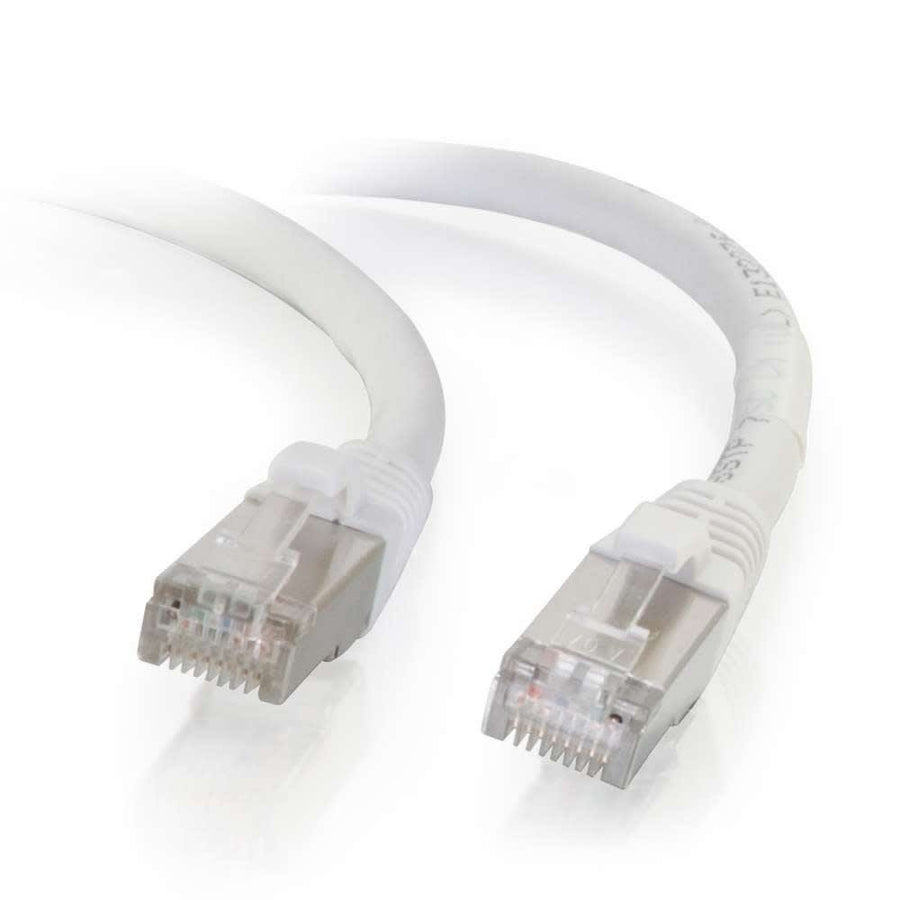

1ft (0.3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - White
White 1ft (0.3m) Cat6 shielded STP patch cable featuring snagless boots and 26AWG stranded copper conductors
The C2G CG00914 is a 1ft (0.3m) Cat6 shielded STP Ethernet network patch cable designed for high-speed data environments. This white patch cable is engineered to protect network transmissions from electromagnetic interference and noise. Utilizing a stranded SSTP construction, it is built to handle bandwidth-intensive applications for voice, data, and video distribution while reducing impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance. The design features 26AWG bare copper conductors with FM-PE insulation and a PVC jacket. To minimize Near-End Crosstalk (NEXT), each individual pair is bonded together to maintain twist-spacing through the termination point. The connectors are housed in PVC snagless boots for added protection. This cable follows the T568B wiring scheme and is rated for temperatures up to 75°C. For easy identification during installation, each individual length is labeled.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | STP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009146 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
6-Port Surface Mount Box
WP3506WH$6.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will the C2G CG00914 work in my shielded network rack?
Yes, this Cat6 STP cable is designed for high-speed networks where protection from electromagnetic interference is required to maintain signal integrity.
Is this patch cable compatible with T568A wiring?
No, this specific SKU (CG00914) is wired using the T568B scheme.
What is the difference between this and the black version?
The CG00914 is the white finish variant; the CG00808 is the identical black version.
What other equipment is compatible with this cable?
It is compatible with a variety of hardware including the DA8000WH 8-Port Network Switch and various C2G USB-C to Ethernet adapters.
What is the temperature rating for this cable?
This cable is rated for operation in temperatures up to 75°C.
