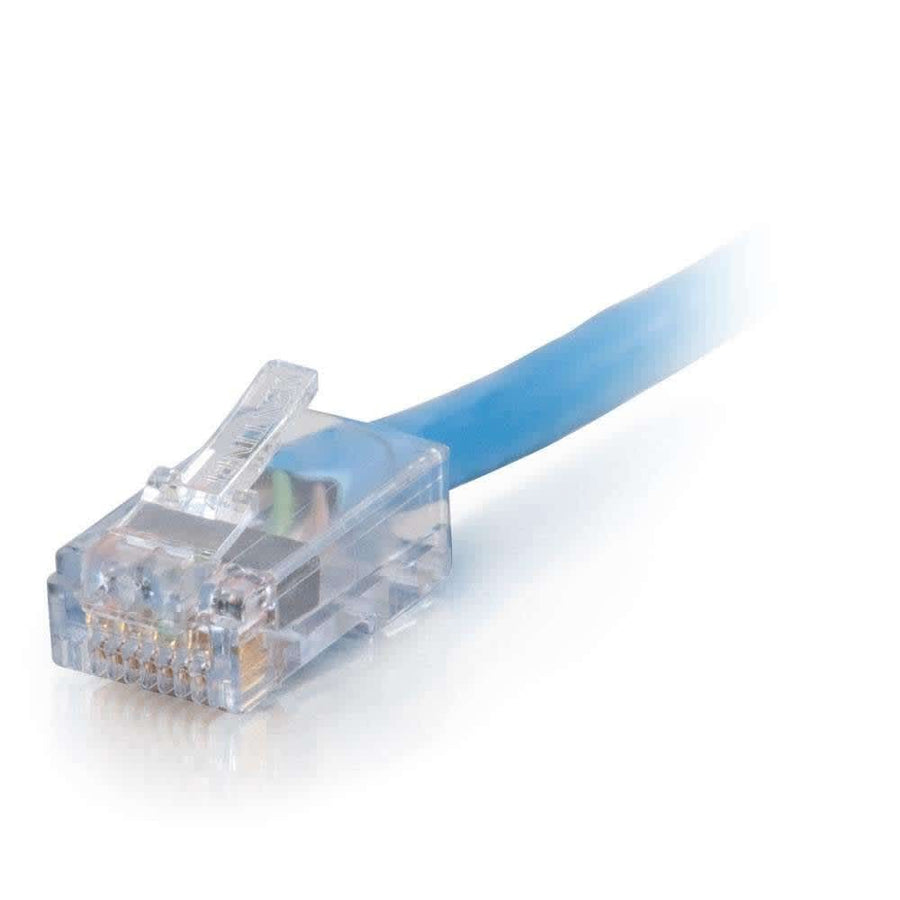

1ft (0.3m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Blue
1ft Cat6 plenum-rated patch cable, blue unshielded UTP with 23AWG copper conductors
The CG15277 is a 1ft (0.3 m) Cat6 patch cable designed for high-performance network connectivity in plenum environments. This unshielded (UTP) cable features 23AWG stranded copper conductors and is rated CMP and FT6 for safe installation in air handling spaces. Each cable is equipped with 50 micron gold plated RJ-45 male connectors on both ends and is non-booted for a compact profile. Tested to 550MHz and compliant with TIA/EIA-568-C.2 standards, this blue cable ensures reliable data transmission. This TAA compliant component is RoHS, REACH, and TSCA compliant, and meets NDAA 889 requirements. For testing and verification, this series is compatible with various C2G diagnostic tools including the LANsmart TDR Cable Tester and the SOHOTest-E™ Residential Cable Tester. It is also suitable for use with Cat6 rack mount patch panels and network interface modules.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152774 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the CG15277 suitable for plenum air-handling spaces?
Yes, this cable features a CMP-rated and FT6-rated jacket, making it safe for installation in plenum environments.
What is the maximum frequency rating for this Cat6 cable?
The CG15277 is tested to 550MHz and meets the TIA/EIA-568-C.2 standard for Cat6 performance.
