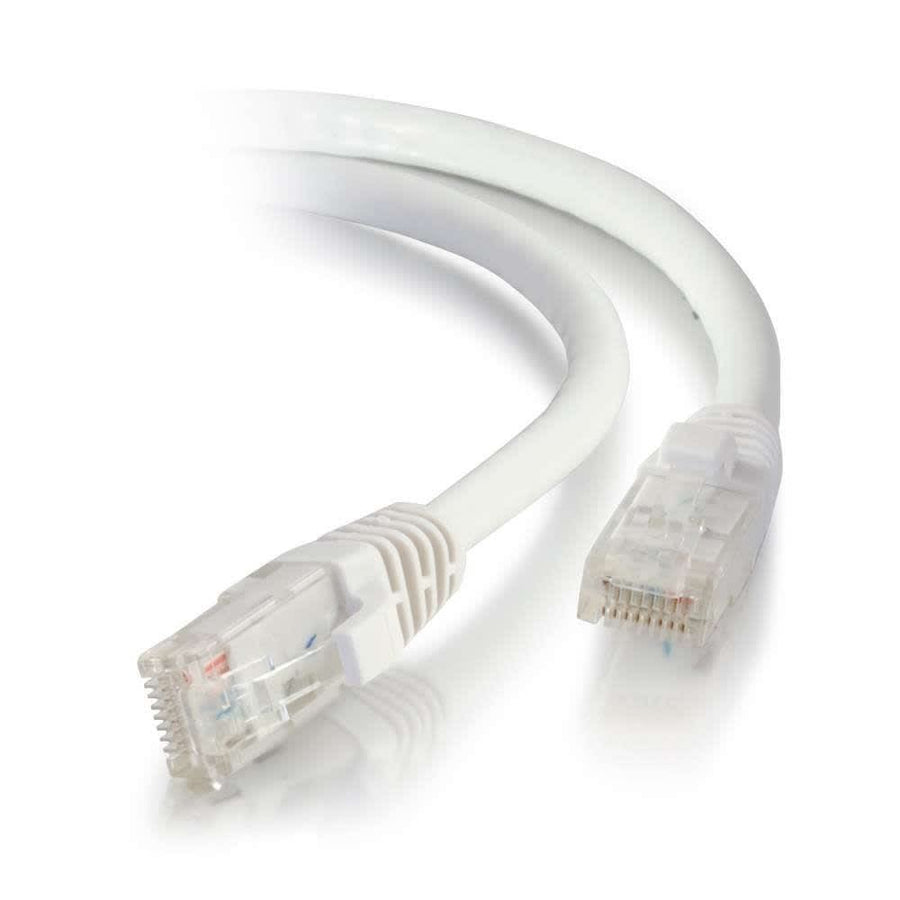

1ft (0.3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - White
1ft white Cat5e snagless unshielded UTP Ethernet patch cable with RJ-45 male connectors
The C2G CG29952 is a 1ft (0.3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable in white. Designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications, this cable meets all Cat5e TIA/EIA standards. It is engineered to drastically reduce both impedance and structural return loss (SRL) through its specific construction. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line, extending all the way to the termination point. This design, utilizing high quality copper stranded conductors, helps minimize Near-End Crosstalk (NEXT) levels. The molded, snagless boot provides extra strain relief and prevents unwanted cable snags during installation or maintenance. This unshielded twisted pair (UTP) cable features a 24 AWG wire gauge and a 0.21 in (5.3 mm) cable diameter. It is rated for standard/non-rated environments and is built with a PVC jacket and connector hood.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 14
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the length and color of this patch cable?
The CG29952 is a 1ft (0.3m) cable with a white PVC jacket and white connector hood.
What type of connectors are used on this Cat5e cable?
This cable features two RJ-45 male connectors with a snagless, booted design to protect the clips.
What other items are compatible with this Cat5e series?
This cable is compatible with various accessories, including the AC1000 6-Port Network Interface Module and the WP3475 series Keystone Inserts.
Is this cable suitable for high-bandwidth applications?
Yes, it is designed for bandwidth-intensive applications and supports a bandwidth of 350 mHz.
What is the warranty for the CG29952?
This C2G Cat5e patch cable is backed by a lifetime warranty.
