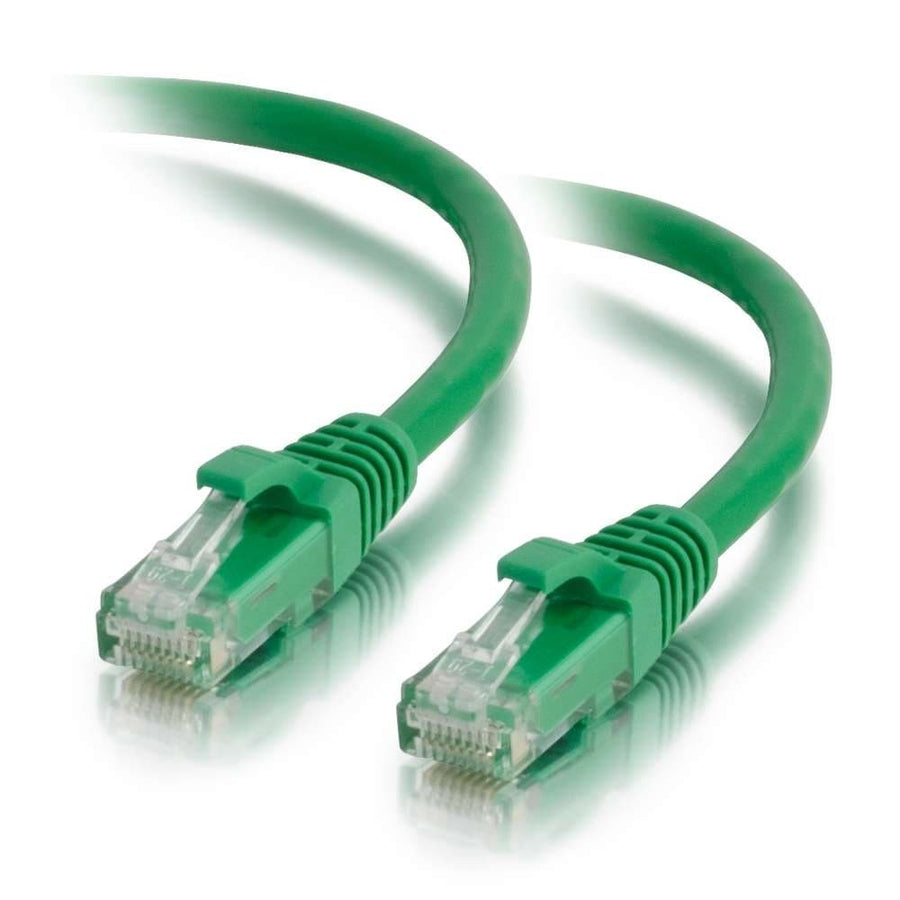

1ft (0.3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Green
Green 1ft Cat5e snagless patch cable, unshielded UTP with 24 AWG copper conductors and RJ-45 male connectors
The C2G CG24229 is a 1ft (0.3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable in green, engineered for bandwidth-intensive voice, data, or video distribution applications. This cable meets all TIA/EIA Cat5e standards and is designed to significantly reduce impedance and structural return loss (SRL). To ensure signal integrity, each individual pair is bonded together, maintaining precise twist-spacing from the termination point to the end of the line. This construction, utilizing high-quality stranded copper conductors, minimizes Near-End Crosstalk (NEXT) levels. For easier installation and longevity, the molded snagless boot protects the RJ-45 clips from damage during plugging and unplugging while providing additional strain relief. This 24 AWG cable features a PVC jacket and a 0.21 in (5.3 mm) diameter. It utilizes a T568B wiring scheme and is rated for standard, non-rated environments. This SKU is part of a series available in multiple colors and lengths up to 150ft to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120242291 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
Will this CG24229 cable work for high-bandwidth video applications?
Yes, this Cat5e patch cable is designed for bandwidth-intensive voice, data, or video distribution applications and meets all TIA/EIA Cat5e standards.
What is the difference between this and other CG24229 series cables?
This specific SKU is the green 1ft (0.3m) version; other variants in the series offer different colors and lengths up to 150ft.
What tools are required for installation of the CG24229?
As a pre-terminated patch cable with molded RJ-45 male connectors, no specialized installation tools are required for connection.
Is this cable compatible with Cat5e keystone jacks?
Yes, it is compatible with several Cat5e accessories, including the WP3475GN Green Quick Connect RJ45 Keystone Insert.
Does this cable include shielding?
No, the CG24229 is an unshielded (UTP) cable with a standard PVC jacket.
