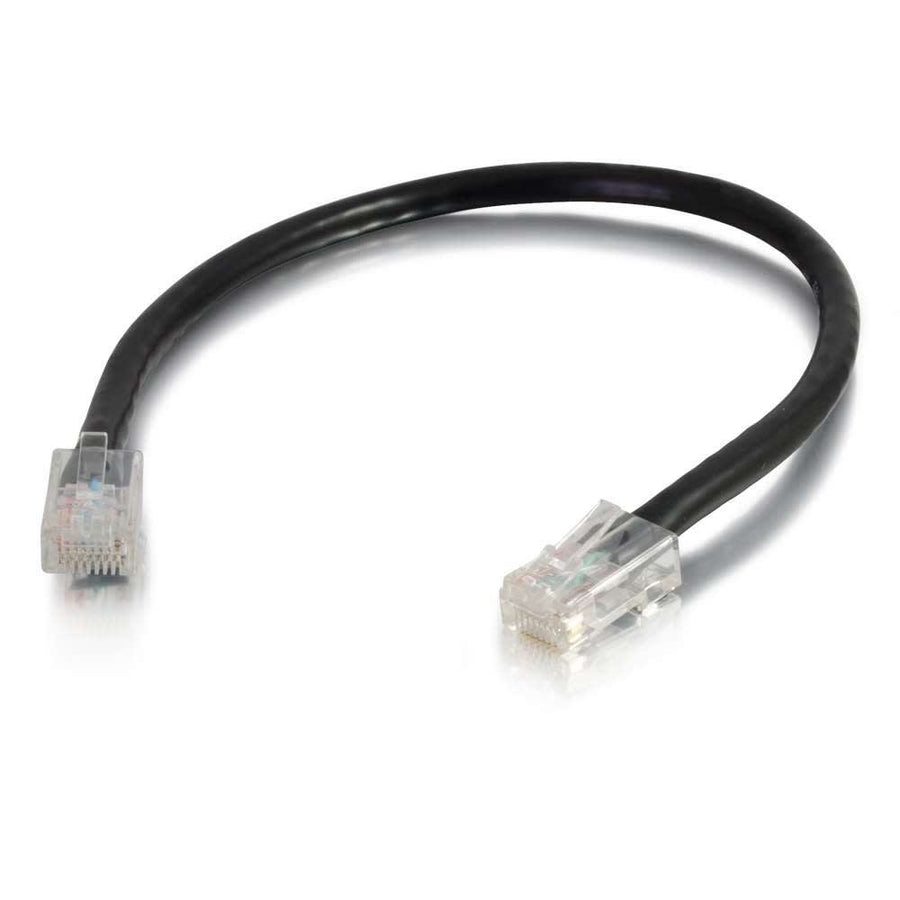

1ft (0.3m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
1ft (0.3m) Cat5e unshielded UTP patch cable with black PVC jacket and RJ-45 male connectors
The C2G CG26374 is a 1ft (0.3m) Cat5e non-booted UTP Ethernet network patch cable designed for short-distance connectivity in high-density environments. This black patch cable features 24 AWG stranded copper conductors, providing reliable signal transmission for Cat5e performance applications. Built with a standard PVC jacket and an unshielded (UTP) design, this cable has a diameter of 0.21 in (5.3 mm). The connectors are both RJ-45 male types, utilizing the T568B wiring scheme. This specific SKU is part of a larger series of Cat5e non-booted patch cables available in various lengths, including 2 ft, 3 ft, and 10 ft, and different colors like blue, gray, or yellow. It is a TIA/EIA compliant cable that meets RoHS, REACH, CE, and NDAA 889 requirements. The product is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
6-Port Cat5e Network Interface Module
AC1012$59.99
6-Port Network Interface Module
AC1000$54.99
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
Cat5e RJ45 Keystone Connector in Brown
WP3450BR$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Cat5e Quick Connect RJ45 Keystone Insert in Ivory
WP3475IV$3.99
Questions about this part
What is the wiring standard for the C2G CG26374?
This patch cable uses the T568B wiring scheme to ensure compatibility with standard networking equipment.
Is this cable suitable for high-density racks?
Yes, the 1ft (0.3m) length and 0.21 in (5.3 mm) diameter make it ideal for short-run patch connections in tight spaces.
What are the compliance certifications for this cable?
The CG26374 is RoHS, REACH, CE, and NDAA 889 compliant.
Does this cable have a built-in boot for strain relief?
No, this is a non-booted connector type, which results in a more compact profile for space-constrained installations.
What is the conductor material used in the CG26374?
The cable utilizes 24 AWG stranded copper conductors for the electrical path.
