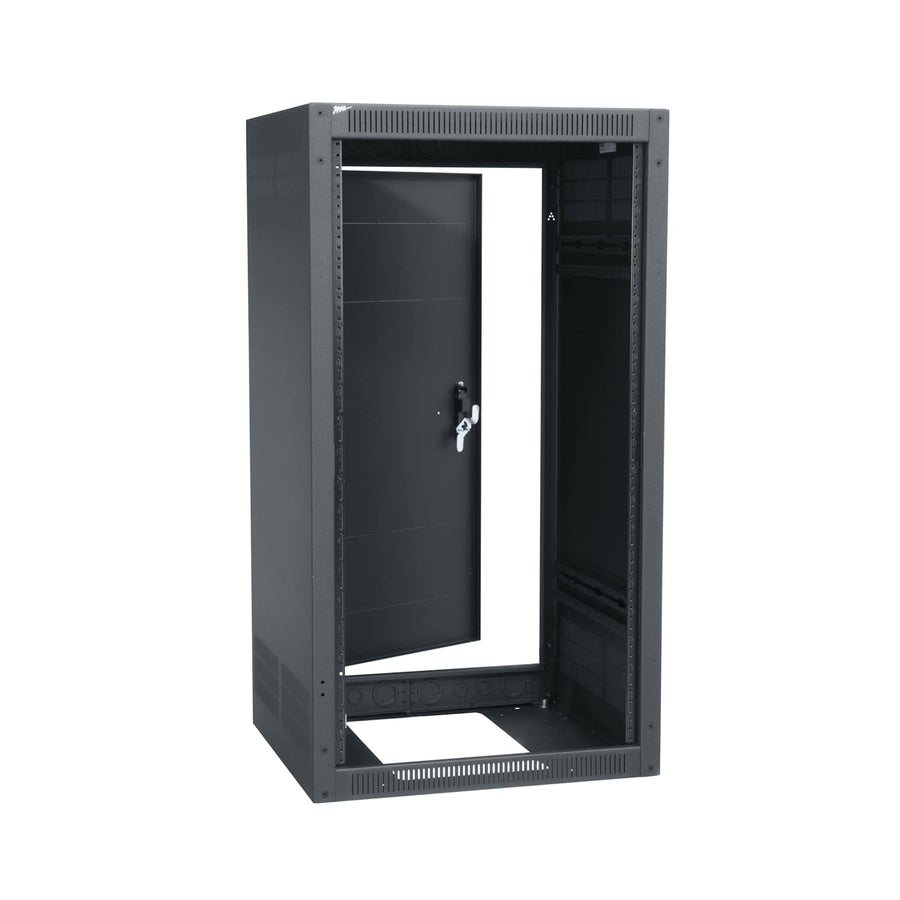

18 RU ERK Series Rack, 25 Inches Deep, Knockdown
18 RU floor standing rack with 25" depth, 1000 lbs UL load capacity, and a knockdown design for easy shipping
The ERK-1825KD is a 18 RU Middle Atlantic ERK Series rack designed for efficient deployment and flexible installation. This floor-standing enclosure features a 25 in (63.5 cm) depth and a usable depth of 23.47 in (59.6 cm). Built from steel with a Black Wrinkle Powder Coat finish, the frame-only configuration ships flat to reduce shipping costs and simplify handling. It features an adjustable 10-32 threaded rackrail with numbered spaces for precise component positioning, along with lacing points and slotted brackets to assist with cable management. Thermal management is supported by top and bottom venting on the rack sides, and the unit includes a standard configurable rear door. This TAA compliant, UL Listed rack is capable of a 1000 lbs UL load capacity and a seismic load capacity of 591 lbs (268.1 kg). For partitioned multi-bay installations, these racks can be ganged together to improve security and thermal management control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25 in (63.5 cm) |
| Height | 35.63 in (90.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 18 RU |
| Shipping Weight | 104 lbs (47.2 kg) |
| UL Load Capacity | 1000 lbs (453.6 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
| Usable Height | 31.63 in (80.3 cm) |
All other specifications 14
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| Rear Door | Yes |
| Ships Flat | Yes |
| TAA Compliant | Yes |
| UPC | 656747093289 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 591 lbs (268.1 kg) |
Resources
You'll need these with it
Leveling Feet Isolating
LF-ISO$55.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Caster Base for 20 Inch Deep ERK Series - 700 pounds
CBS-ERK-20R$356.40
Multi-Mount PDU, 20 Outlet & 15A
PD-2015R-NS$333.00
21 RU Rackrail 10-32 for ERK Series
ERK-RR21$93.60
10-32 Rackscrew Truss-Head - 25 Piece
HPS$13.50
21 RU Solid Front Door for DWR and EWR Racks
FD-21$310.50
101mm DC Fan Kit with (1) Fan, 69CFM for the European Union
FAN-69-K-EU$130.50
PDT Low Profile Vertical Power Strip, 6 Outlet, 20A
PDT-620C-NS$264.60
Questions about this part
The ERK-1825KD provides a usable height of 31.63 in (80.3 cm) and a usable depth of 23.47 in (59.6 cm).
The ERK-1825KD provides a usable height of 31.63 in (80.3 cm) and a usable depth of 23.47 in (59.6 cm).
Can I add casters or leveling feet to this rack?
Yes, you can equip this rack with accessories such as the LF-ISO leveling feet or the CBS-ERK-20R Caster Base.
How do I manage power and cabling in this enclosure?
The ERK-1825KD includes lacing points and slotted rackrail brackets for cable management. For power, you can install a PD-2015R-NS Multi-Mount PDU or various PDT Low Profile Vertical Power Strips.
Is this rack TAA compliant for government projects?
Yes, the ERK-1825KD is TAA compliant and is manufactured in the USA.
What documentation is available for submittals or installation?
Technical documentation includes the ERK Series Ready-to-Assemble Enclosure A&E Specification Sheet and the ERK Series Enclosure Instruction Sheet.
