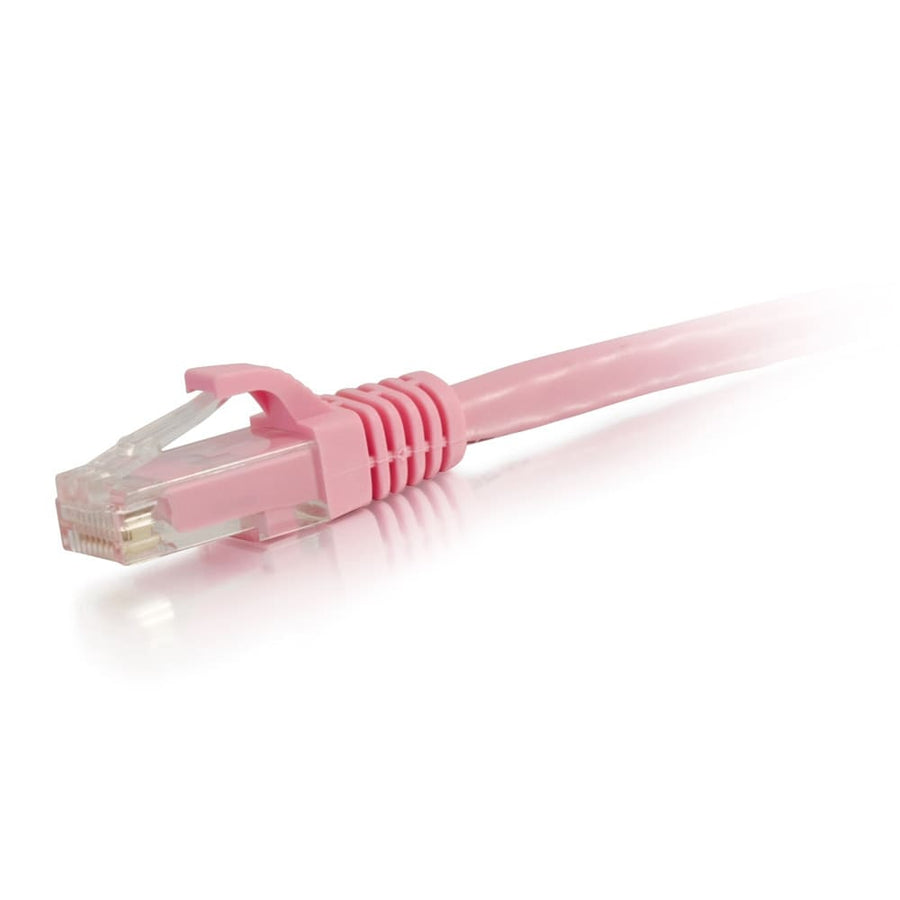

15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Pink
15ft pink Cat6a UTP patch cable with snagless boots, designed for 10GBase-T high-density network applications
The C2G CG50867 is a 15ft (4.6 m) Pink Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable engineered for high-performance 10GBase-T environments. This cable supports 10 Gigabit data transmission over 4-pair copper, facilitating connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for network adapters, hubs, switches, routers, and patch panels. The cable features 26AWG stranded bare copper conductors and HDPE (High-density Polyethylene) insulation to provide improved alien crosstalk performance. For ease of installation in high-density switch applications, the RJ-45 male connectors are equipped with snagless PVC boots. The 0.24 in (6 mm) diameter cable is color-coded pink to assist with organized network management, and each unit includes an individual length label for rapid identification during deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.4 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508670 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10 Gigabit Ethernet speeds?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over a 4-pair copper cable.
Is this cable suitable for high-density patch panels?
Yes, the snagless connector design is specifically ideal for high-density switch and patch panel applications where cable congestion is common.
What is the maximum length supported for Cat6a transmission?
This cable supports connections up to 100 meters for 10 Gigabit Ethernet data transmission.
What testing standards does this patch cable meet?
This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What is the difference between this and other C2G Cat6a cables?
This specific SKU (CG50867) is a pink, 15ft unshielded UTP cable with 26AWG conductors and snagless boots.
