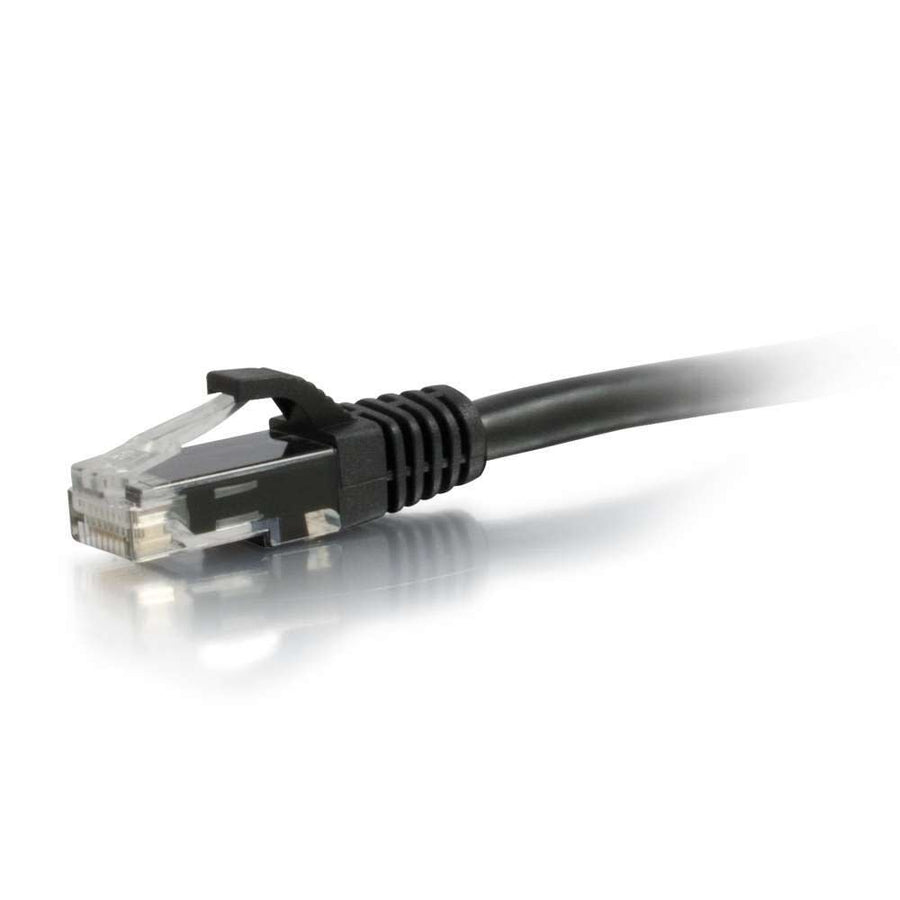

15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
15ft Black Cat6a snagless UTP patch cable, 26AWG stranded copper, ANSI/TIA 568 C.2 tested for 10 Gigabit transmission
The C2G CG00735 is a 15ft (4.6m) Cat6a snagless unshielded UTP Ethernet network patch cable designed for high-performance 10GBase-T environments. This cable supports 10 Gigabit data transmission over a 4-pair copper configuration, allowing for connections up to 100 meters. It is engineered specifically for use with network adapters, hubs, switches, routers, and patch panels. The 26AWG bare copper conductors feature a stranded construction and are insulated with HDPE (High-density Polyethylene) to ensure signal integrity. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance in dense environments. For ease of installation in high-density switch applications, the cable features a PVC snagless hood. The 0.24 in (6 mm) diameter jacket is made of PVC and is rated for temperatures up to 75°C. For organizational purposes, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.41 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007357 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00701$25.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable work with my 10 Gigabit switch?
Yes, the CG00735 is designed for 10GBase-T ports and equipment, providing the necessary performance for 10 Gigabit data transmission.
Is this patch cable suitable for high-density rack environments?
Yes, the snagless connector hood is specifically designed to facilitate installation and management in high-density switch applications.
What is the wiring scheme for the CG00735?
This patch cable follows the 568B wiring scheme and is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What other Cat6a products are compatible with this cable?
This cable is compatible with various C2G hardware, including the WP246A 24-Port Rack Mount Patch Panel and multiple Cat6a Quick Connect RJ45 Keystone Inserts.
What are the physical construction details of this cable?
The cable features 26AWG stranded bare copper conductors, an HDPE insulation, and a PVC jacket with a 0.24 in (6 mm) diameter.
