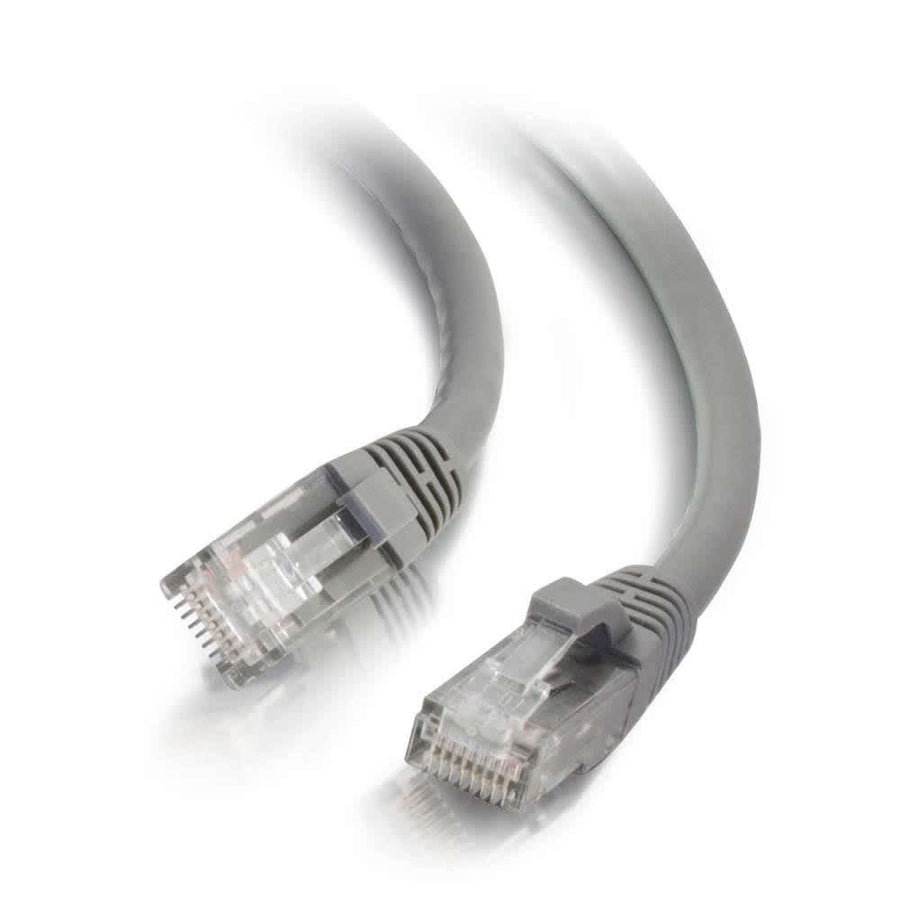

15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
15ft Cat6 Unshielded UTP patch cable in gray, featuring snagless boots for clip protection and stranded copper conductors
The C2G CG22016 is a 15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth voice, data, or video distribution in Gigabit computer networks. This cable meets all TIA/EIA Cat6 standards, helping to reduce structural return loss (SRL) and impedance. Each individual pair is bonded together to maintain precise twist-spacing through to the termination point, which minimizes Near-End Crosstalk (NEXT) levels. Constructed with high-quality stranded copper conductors and a PVC jacket, this cable is built for performance in demanding environments. The integrated snagless boot protects the RJ-45 clips from damage during installation and provides additional strain relief during repeated plugging and unplugging. This gray cable uses a T568B wiring scheme and features 24 AWG conductors. This specific SKU is part of a broader series that offers different lengths up to 150ft and ten different color options for easy network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120220169 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work with my patch panel?
Yes, this cable is compatible with various hardware such as the C2G 48-Port Rack Mount Patch Panel (SKU 48845CC6) or the 24-Port Rack Mount Patch Panel (SKU 24845CC6).
What is the wiring standard for the CG22016?
This patch cable uses the T568B wiring scheme and features standard RJ-45 male connectors on both ends.
Is this cable suitable for high-bandwidth video distribution?
Yes, it is designed for bandwidth-intensive applications including Gigabit computer networks and video distribution, meeting all TIA/EIA Cat6 standards.
How does the snagless design benefit installers?
The molded snagless boot provides extra strain relief and prevents the RJ-45 connector clips from breaking when plugging or unplugging the cable.
Are there different color options available for this series?
Yes, this series is available in 10 different colors, allowing installers to implement color-coding throughout a network installation.
