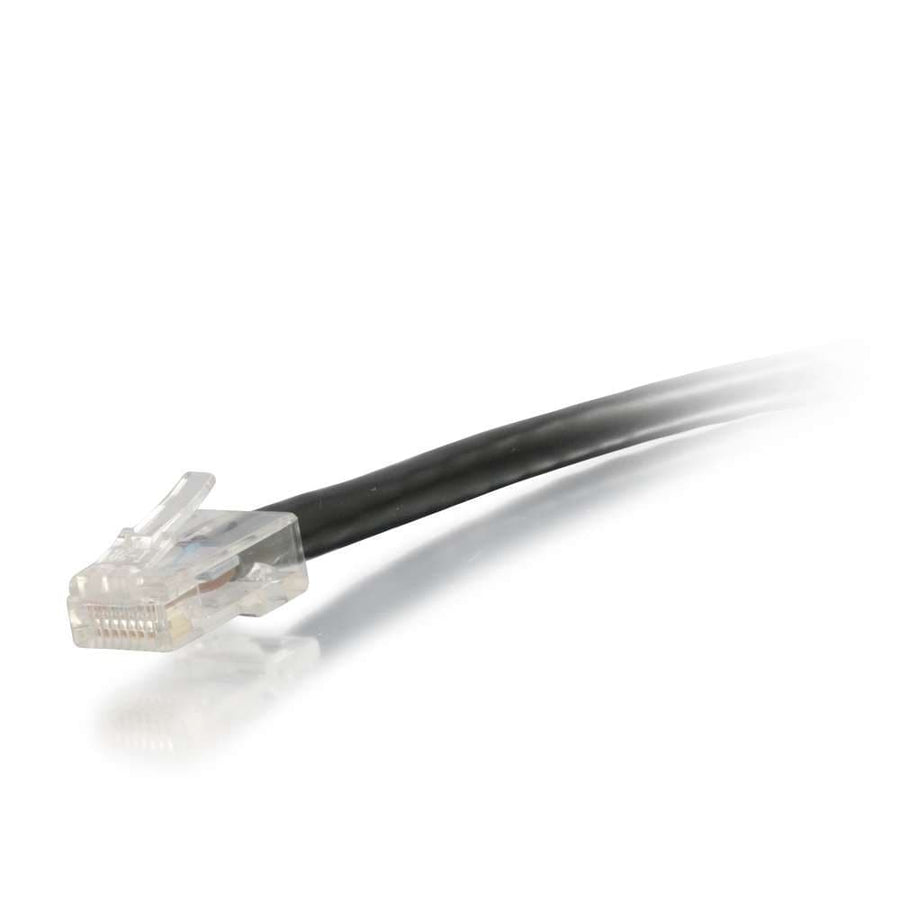

15ft (4.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
15ft Cat6 unshielded UTP patch cable with black PVC jacket and T568B wiring
The C2G CG04118 is a 15ft (4.6 m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution. This black patch cable is engineered for fast Ethernet and Gigabit computer networks, meeting all Cat6 TIA/EIA standards to ensure reliable performance. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point, which drastically reduces impedance and structural return loss (SRL). Constructed with high-quality 24 AWG stranded copper conductors, this cable is designed to minimize Near-End Crosstalk (NEXT) levels. It features RJ-45 male connectors on both ends and follows the T568B wiring scheme. The cable utilizes a PVC jacket with a 0.24 in (6 mm) diameter and is rated for temperatures up to 75°C. This unshielded cable is an ideal solution for professional network deployments requiring consistent throughput.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.43 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041184 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this CG04118 cable work for Gigabit Ethernet networks?
Yes, the CG04118 is a Cat6 rated cable designed specifically for high-bandwidth Gigabit computer networks and video distribution.
What is the wiring standard for this C2G patch cable?
This cable follows the T568B wiring scheme and uses 24 AWG stranded copper conductors.
Is the CG04118 TAA compliant?
No, this specific model is not listed as TAA compliant in the manufacturer specifications.
What accessories are compatible with this Cat6 series?
You can use this cable with various items such as the Cat6 48-Port Rack Mount Patch Panel (48845CC6) or the Cisco/C2G SOHOTest-E™ Residential Cable Tester.
What is the coverage for the C2G CG04118 warranty?
This C2G patch cable is backed by a lifetime warranty.
