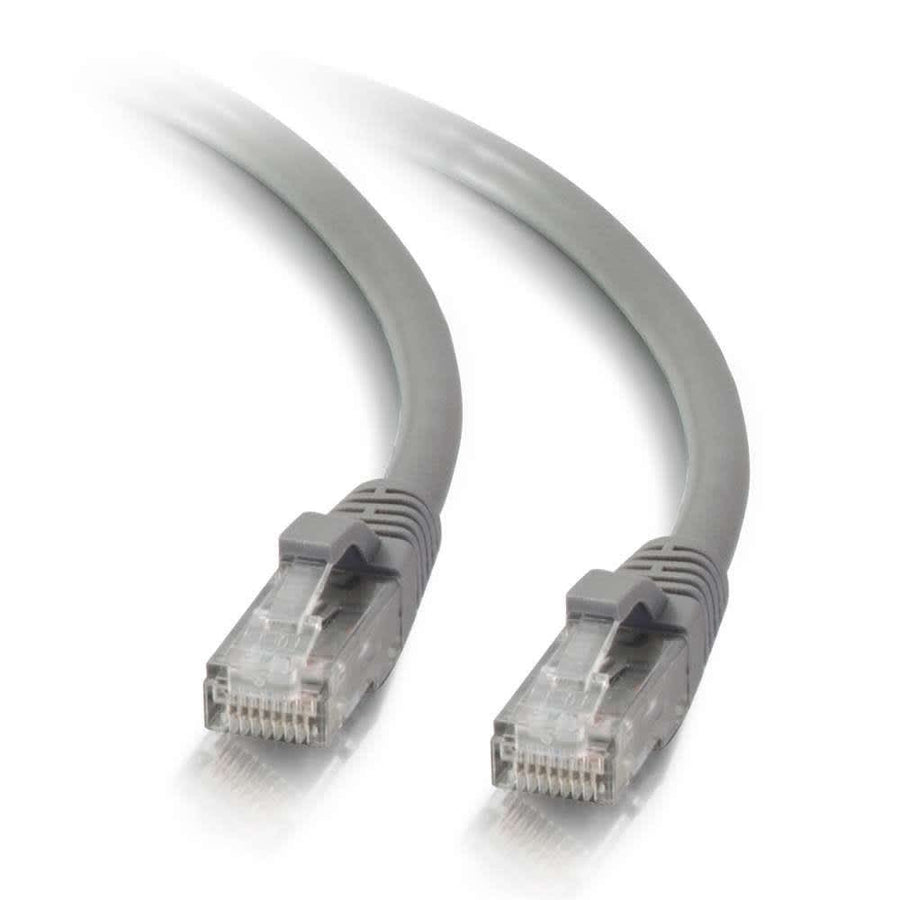

15ft (4.6m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
15ft Cat5e snagless patch cable, unshielded UTP construction, gray PVC jacket, and T568B wiring for fast Ethernet networks
The C2G CG22013 is a 15ft (4.6m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable features a T568B wiring scheme and is constructed from high-quality stranded copper to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing through to the termination point, which helps reduce impedance and structural return loss (SRL). The 0.21 in (5.3 mm) diameter cable is protected by a molded, snagless PVC boot that provides extra strain relief and prevents the RJ-45 clips from catching during installation. This gray patch cable operates with a 350 mHz bandwidth and is rated for standard, non-rated jacket environments. For those needing specific color-coding in a network, this SKU is part of a series available in up to 10 colors and lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.34 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120220138 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the maximum bandwidth for the C2G CG22013?
This Cat5e patch cable supports a bandwidth of 350 mHz for high-speed data distribution.
Is the C2G CG22013 suitable for color-coded network environments?
Yes, this gray cable is part of a series available in 10 different colors to facilitate easy network identification.
What wiring standard does this patch cable use?
The C2G CG22013 is wired according to the T568B standard using stranded copper conductors.
What is the difference between this and other C2G Cat5e cables?
This specific SKU is a 15ft unshielded UTP version in gray, though the series offers various lengths up to 150ft and different color options.
What certifications does this cable hold?
The CG22013 is compliant with RoHS, REACH, and CE standards, and is NDAA 889 compliant.
