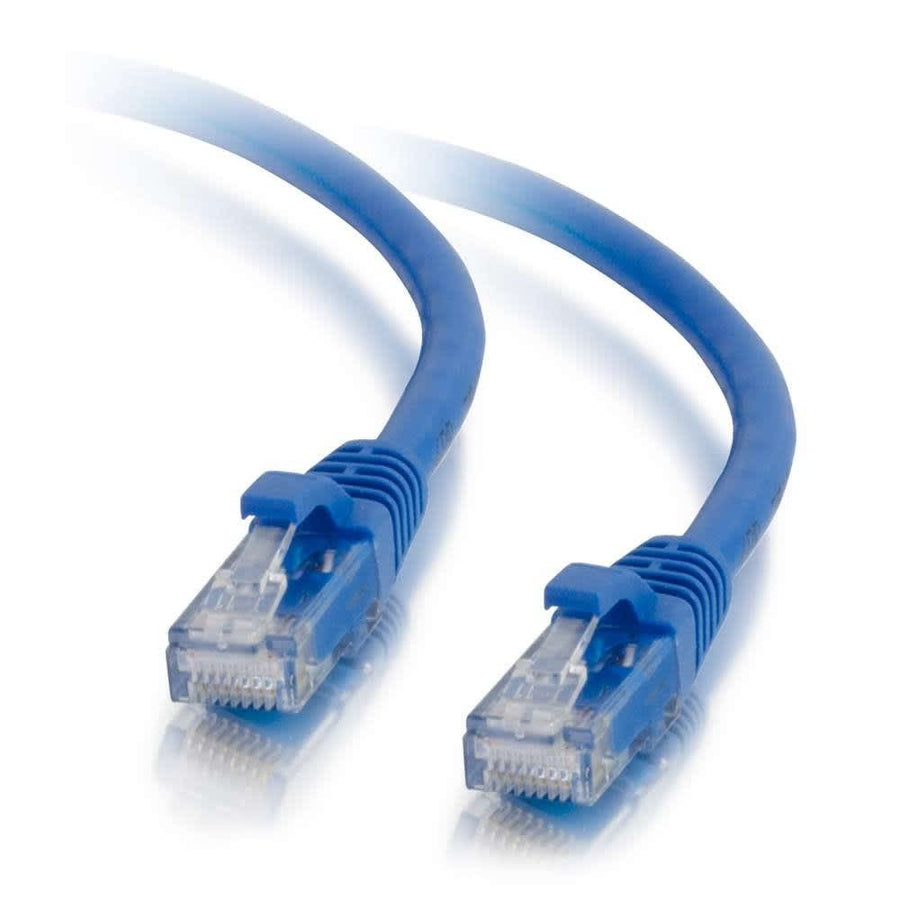

15ft (4.6m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
15ft Blue Cat5e snagless unshielded UTP Ethernet patch cable with copper stranded conductors
The CG22012 is a 15ft (4.6 m) Cat5e snagless unshielded UTP Ethernet patch cable in blue, designed for bandwidth-intensive voice, data, or video distribution applications in fast Ethernet networks. This cable meets all Cat5e TIA/EIA standards and is constructed with high quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. To maintain structural integrity and reduce impedance and structural return loss (SRL), each individual pair is bonded together to preserve twist-spacing up to the termination point. This cable features a 0.21 in (5.3 mm) diameter and utilizes a T568B wiring scheme. The molded, snagless PVC boots provide extra strain relief and protect the RJ-45 male connector clips from damage during installation and frequent plugging or unplugging. This product is part of the Cat5e Snagless Patch Cable series and is available in various lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.35 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120220121 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the maximum bandwidth for the CG22012?
The CG22012 supports a bandwidth of 350 mHz, making it suitable for high-speed data and video applications.
Is the CG22012 compatible with RJ45 ports?
Yes, this cable features two RJ-45 male connectors and is designed for standard unshielded twisted pair (UTP) networking.
What is the difference between the snagless design and a standard boot?
The snagless design includes a molded boot that covers the connector clip, protecting it from snapping off when being pulled through tight spaces.
What color is the CG22012 patch cable?
This specific SKU, CG22012, is blue, though the series is available in 10 different colors for network color-coding.
Which documents are available for technical submittals?
You can access the Cat5e Snagless Unshielded Cables PDF and the C2G Ethernet Patch Cable Matrix PDF for detailed technical reference.
