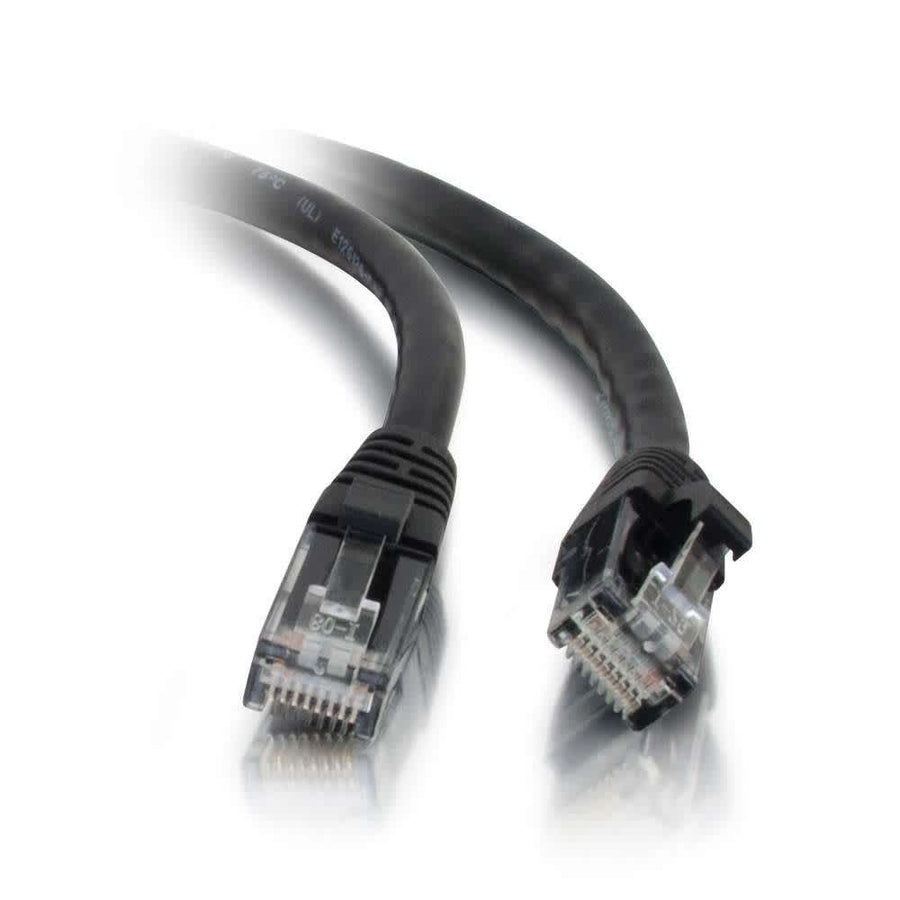

15ft (4.6m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
15ft Cat5e UTP patch cable with snagless boots and black PVC jacket for high-bandwidth network distribution
The C2G CG22011 is a 15 ft (4.6 m) Cat5e Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. This black cable utilizes stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels, ensuring reliable performance for fast Ethernet networks. Each individual pair is bonded together to maintain consistent twist-spacing throughout the entire 4.6 m line right up to the RJ-45 termination points, which helps drastically reduce impedance and structural return loss (SRL). The cable features a 0.21 in (5.3 mm) diameter and is built with a PVC jacket and hood material. For ease of installation, the molded snagless boots protect the connector clips from damage during frequent plugging and unplugging while providing additional strain relief. This cable utilizes a T568B wiring scheme and is rated for 350 mHz bandwidth. The unshielded twisted pair (UTP) design is suitable for standard networking environments requiring high-quality copper connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.35 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120220114 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
Will this CG22011 cable work with my existing network hardware?
Yes, this is a standard Cat5e UTP patch cable using the T568B wiring scheme, making it compatible with most Ethernet-based voice, data, and video equipment.
How do the snagless boots on the CG22011 benefit installation?
The molded snagless design protects the connector clips from snapping off during installation and provides extra strain relief for the cable jacket.
What is the difference between this and other C2G Cat5e cables?
This SKU is the 15 ft black variant; C2G offers this series in 10 different colors and lengths up to 150 ft to assist with network color-coding.
Is the CG22011 suitable for high-density patch panels?
Yes, it is compatible with various C2G accessories including the AC1000 6-Port Network Interface Module and the AC1058 8-Port Cat5e Network Interface Module.
What are the electrical performance ratings for this patch cable?
This cable features a 350 mHz bandwidth, a maximum conductor DC resistance of 89 Ohm/km, and a minimum insulation resistance of 100 Ohm/km.
