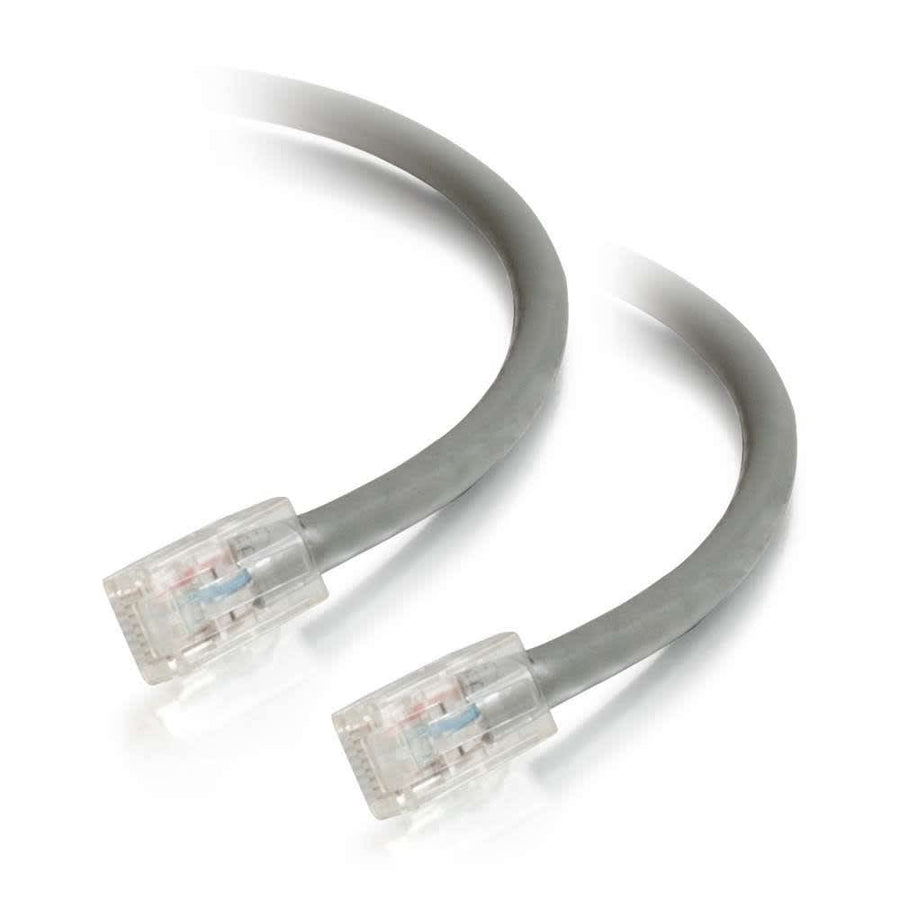

15ft (4.6m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
15ft Cat5e unshielded UTP patch cable in gray with RJ-45 male connectors
The C2G CG22010 is a 15ft (4.6 m) Cat5e unshielded UTP Ethernet network patch cable designed for high-bandwidth applications involving voice, data, or video distribution. Built with high-quality stranded copper conductors, this cable is engineered to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing from the cable through to the termination point, which helps reduce impedance and structural return loss (SRL). This gray patch cable utilizes a non-booted connector type with RJ-45 male ends on both sides and follows the T568B wiring scheme. The 0.21 in (5.3 mm) diameter cable features a PVC jacket and is rated for CMG in-wall installation. This Cat5e cable is designed for use with network adapters, hubs, switches, and routers to support fast Ethernet computer networks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.34 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 14
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120220107 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
6-Port Cat5e Network Interface Module
AC1012$59.99
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Cat5e RJ45 Keystone Connector in Brown
WP3450BR$4.49
Cat5e Quick Connect RJ45 Keystone Insert in Ivory
WP3475IV$3.99
Questions about this part
What is the maximum length available for this Cat5e cable series?
While this specific SKU is 15 ft, the Cat5e Non-Booted Patch Cable series is available in lengths up to 150 ft.
Which network devices can I use the CG22010 with?
This cable is designed for use with network adapters, hubs, switches, routers, and similar hardware.
Is the CG22010 suitable for in-wall installation?
Yes, this cable features a CMG rated jacket, making it suitable for in-wall installation applications.
What is the wiring configuration for this patch cable?
The CG22010 uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
What color is this specific Cat5e patch cable?
This SKU (CG22010) is gray, though the series is available in 10 different colors for network color-coding.
