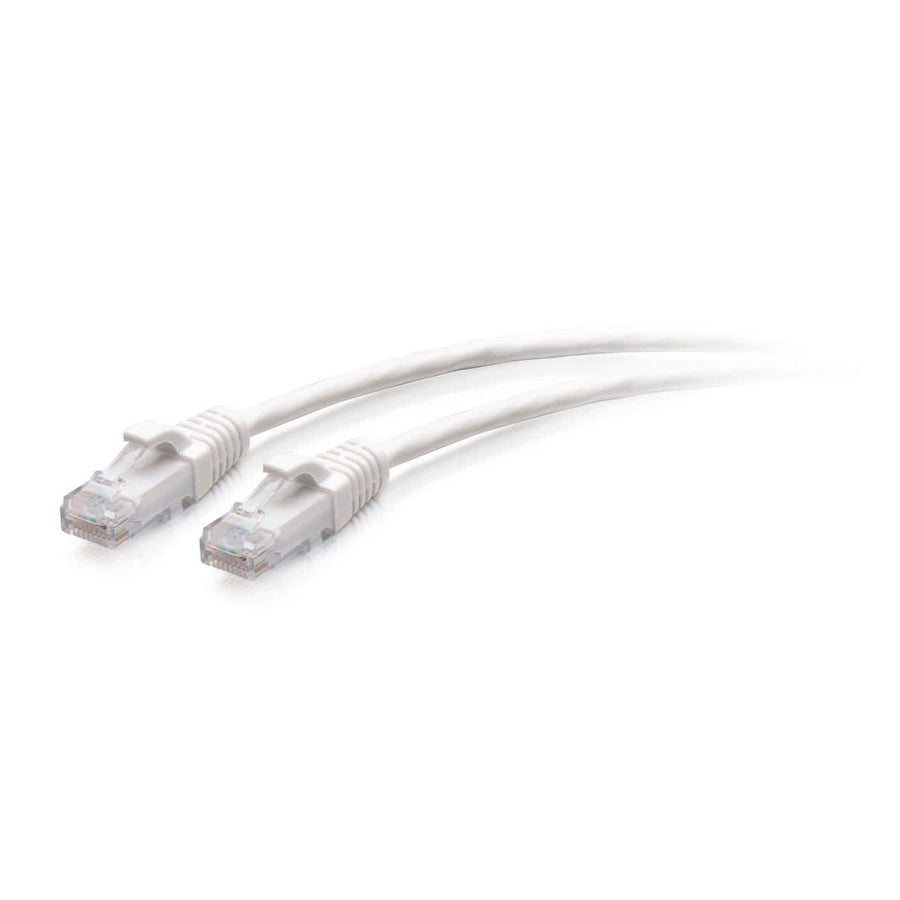

15ft (4.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - White
15ft Cat6a UTP slim patch cable, 28AWG construction, 10Gbps data rate, white finish
The C2G30186 is a 15ft (4.6 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in white. Engineered for high-density cabling environments like datacenters and large conference rooms, this cable utilizes 28AWG stranded copper conductors to significantly reduce cable diameter to 0.19 in (4.8 mm) ± 0.15mm. This slim profile increases airflow in crowded racks and provides the flexibility required for tight space installations. The cable supports data transfer rates up to 10 GBPS, making it suitable for high-bandwidth applications and HDBaseT technology. Each RJ-45 male connector features a snagless, molded PVC boot to prevent accidental snags and provide strain relief during installation. This UTP cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.63 lbs (0.3 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301868 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum data speed for the C2G30186?
The C2G30186 supports data transfer rates up to 10 GBPS, making it suitable for high-performance Cat6a applications.
Can I use this cable for PoE or VoIP applications?
Yes, the Cat6a technology and 28AWG construction support Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) environments.
What accessories are compatible with this Cat6a cable?
This cable can be used with various components, including the WP246A 24-Port Rack Mount Patch Panel and the CG29746 USB-C to Ethernet Adapter.
Is the C2G30186 suitable for high-density datacenters?
Yes, its 0.19 in (4.8 mm) slim diameter is designed to increase airflow and improve flexibility in high-density rack installations.
Which documentation is available for this cable series?
You can access the Cat6a Slim Patch Cable Series Datasheet (PDF) or the C2G Ethernet Patch Cable Matrix (PDF) for technical details.
