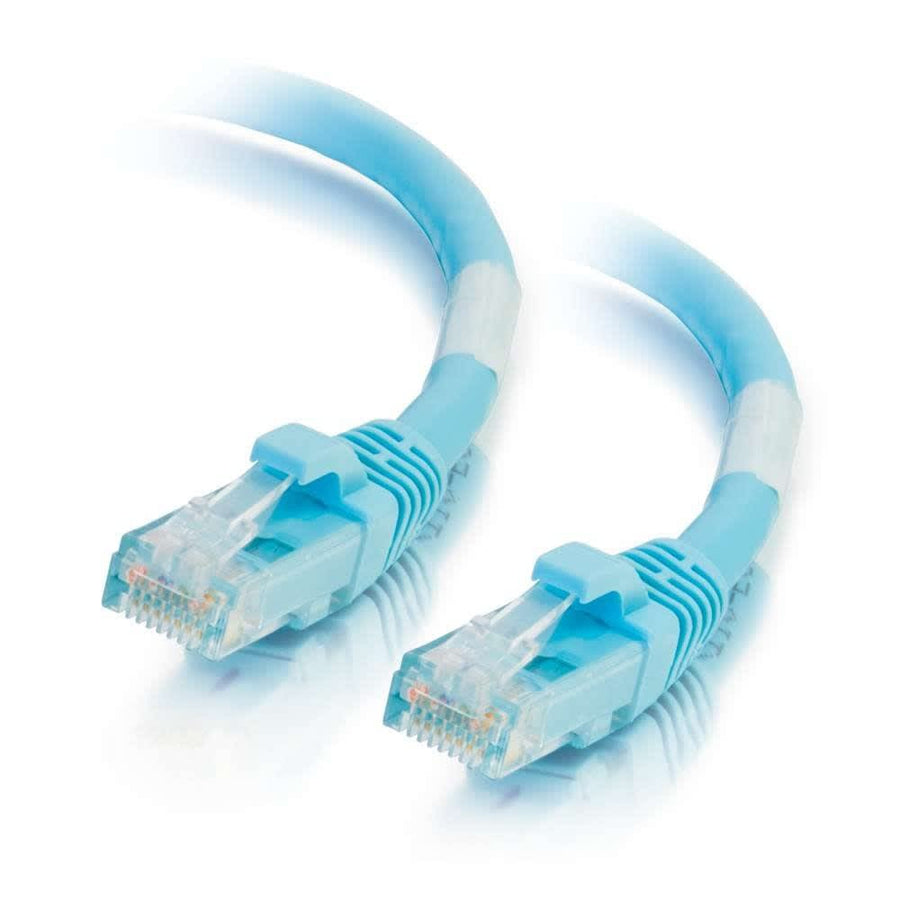

150ft (45.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua
150ft Aqua Cat6a Snagless UTP patch cable for 10GBase-T networking and high-density switch applications
The C2G CG50876 is a 150 ft (45.7 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable finished in Aqua. This cable is designed to support 10GBase-T ports and high-speed equipment, including network adapters, hubs, switches, routers, and patch panels. It enables 10 Gigabit data transmission over a 4-pair copper cable for connections reaching up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved performance by reducing alien crosstalk. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. For ease of identification in complex installations, each cable includes an individual length label. The snagless hood design makes this SKU particularly suitable for high-density switch environments where space is limited.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 3.7 lbs (1.7 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508762 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, the CG50876 supports 10GBase-T equipment and enables 10 Gigabit data transmission for connections up to 100 meters.
What is the wiring scheme for the CG50876?
This patch cable uses the 568B wiring scheme and features 4-pair 26AWG (7/0.16) bare copper conductors.
Is this cable suitable for high-density switches?
Yes, the snagless hood design is specifically intended to facilitate use in high-density switch applications.
What accessories are compatible with Cat6a installations?
This cable is compatible with various Cat6a components like the WP246A 24-Port Rack Mount Patch Panel and the AC106A6 6 Port Cat6a Network Interface Module.
What certifications does this cable hold?
This product carries CE, REACH, and RoHS certifications and is ANSI/TIA 568 C.2 Cat6a channel tested.
